Weg

.1836EP3EAL63-W22

Name: .1836EP3EAL63-W22
Brand: Weg
SKU: .1836EP3EAL63-W22
Price: 210 USD
Availability: InStock

Alt: 13982686, Replacement for .1836EP3EAL63

$210.00

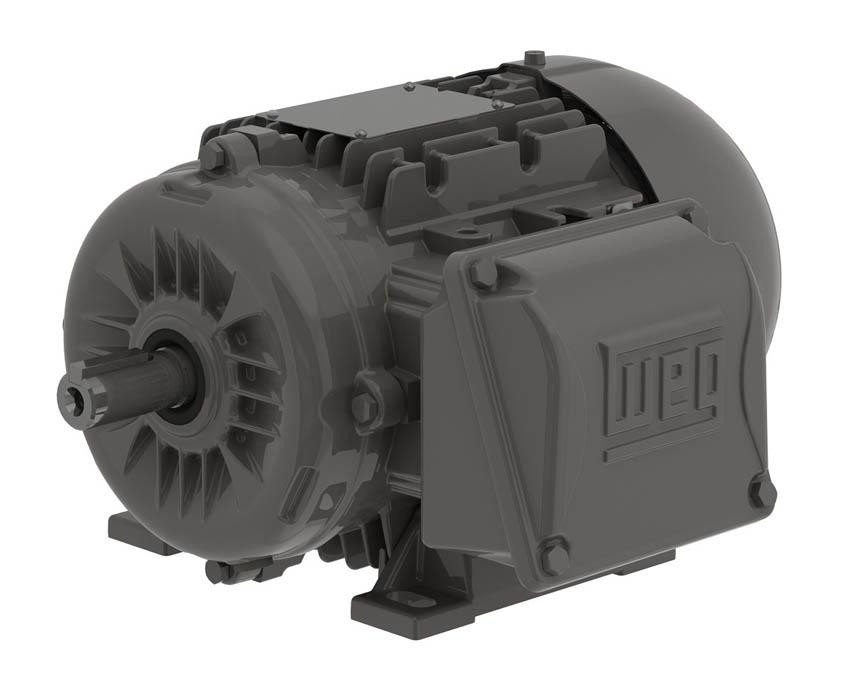

Motor, 0.25hp, 3600rpm, 3 Phase, 230/460//380-415V 60Hz, 2-Pole, 63 Frame, Multimounting High Efficiency IC411 TEFC Enclosure, Footed/No Flange, Heavy Duty, B3L(E) Mounting, Right Position Terminal Box, IP55

SKU:: .1836EP3EAL63-W22
Weight:: 15.70 LBS
Minimum Purchase:: 1 unit

Current Stock:

Quantity:

Current Stock:

Adding to cart… The item has been added

Description
Accessories

Description

WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.

WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.

Features Include:

Standard: NEMA MG-1
Frequency: 60 Hz
Voltage: 230/460//380-415 V
Number of poles: 2
Degree of Protection: IP55
Synchronous speed: 3600 rpm
Output rating: 0.25 HP
Rated current: 1.01/0.504 A
L. R. Amperes: 5.04/2.52 A
No load current: 0.900/0.450 A
Mounting: Foot-mounted
Flange: Without
Mounting: B3L(E)
Terminal box¹: Right position
Enclosure: IC411 - TEFC

Technical Information:
