DUA52C724
Alt: Minimum Order 5 Pieces, Price per Piece
$123.20
Monitoring Relay, DC Under Voltage, SPDT, 8-28VDC, DIN Rail Mount
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 5 units
Description
Monitoring Relay, DC Under Voltage, SPDT, 8-28VDC, DIN-Rail Mount
Specifications
Amp Rating
See Spec
Monitoring Relay Type
Voltage Monitoring
Phase
Single Phase
Poles
SPDT
All - Voltage
24VDC
Warranty
1 Year
Alternate Part Number
Minimum Order 5 Pieces, Price per Piece
Weight
0.25
Features Include:
- DC undervoltage monitoring relay
- Measuring if power supply is below the set level
- Measures its own power supply
- Measuring ranges: 8 - 28 V DC and 38 - 58 V DC
- Adjustable hysteresis: 4 to 50%
- Output: 5 A SPDT NE relay
- For mounting on DIN-rail in accordance with DIN/EN 50 022

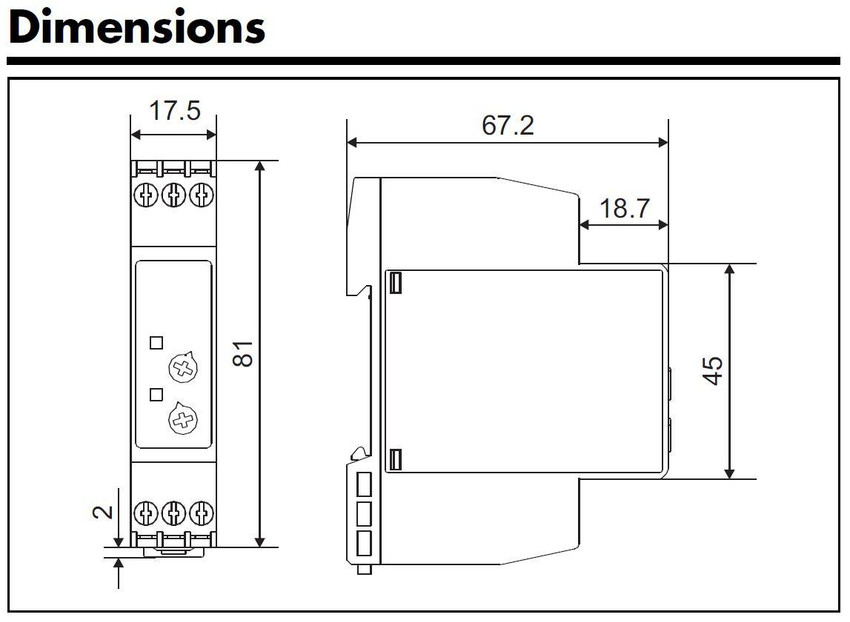

- 17.5 mm housing (DIN 43880)
- LED indication for relay and power supply ON
