PPB01CM48
Alt: Minimum Order 5 Pieces, Price per Piece, *Includes Tariff
$167.14
Monitoring Relay, 3-Phase+N, 380-480VAC, 8A, SPDT, Plug-In, This Item Includes a Tariff That The Manufacturer Has Added
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 5 units
Description

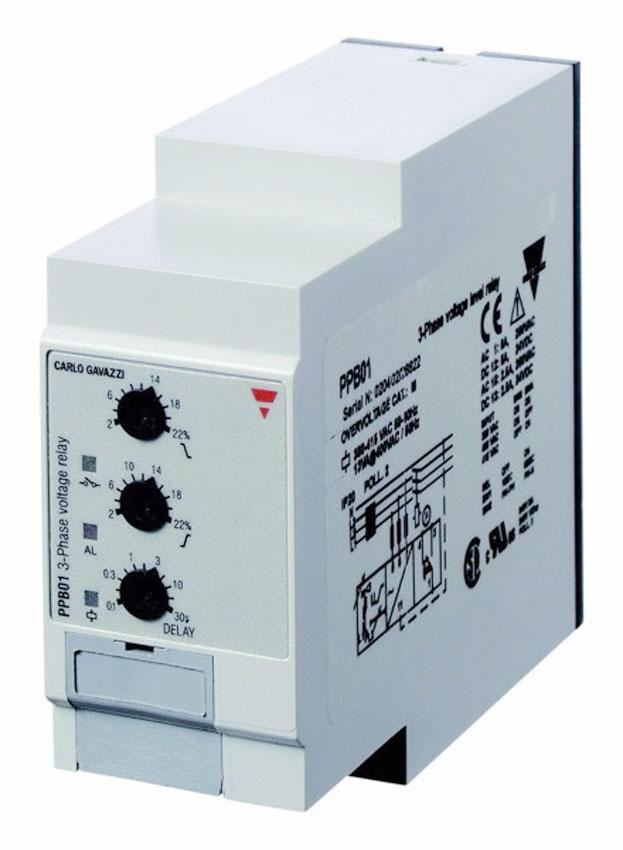

Monitoring Relay, 3-Phase+N, 380-480VAC, 8A, SPDT, Plug-In
Specifications
Alternate Part Number
Minimum Order 5 Pieces, Price per Piece, *Includes Tariff
Amp Rating
See Spec
Monitoring Relay Type
Phase Monitoring
Phase
Three Phase
Poles
SPDT
All - Voltage
380-480VAC
Warranty
1 Year
Weight
0.5
Features Include:
- TRMS 3-phase over and under voltage, phase sequence and phase loss monitoring relays
- Detect when all 3 phases are present and have the correct phase sequence (except for N versions)
- Available versions (W4) supplied between phase and neutral
- Detect if all the 3-phase-phase or phase-neutral voltages are within the set limits
- Upper and lower limits separately adjustable
- Measure their own power supply
- Selection of measuring range by DIP-switches
- Adjustable voltage on relative scale
- Adjustable delay function (0.1 to 30 s)
- Output: 8 A SPDT relay N.E.
- For mounting on DIN-rail in accordance with DIN/EN 50 022 (DPB01) or plug-in module (PPB01)

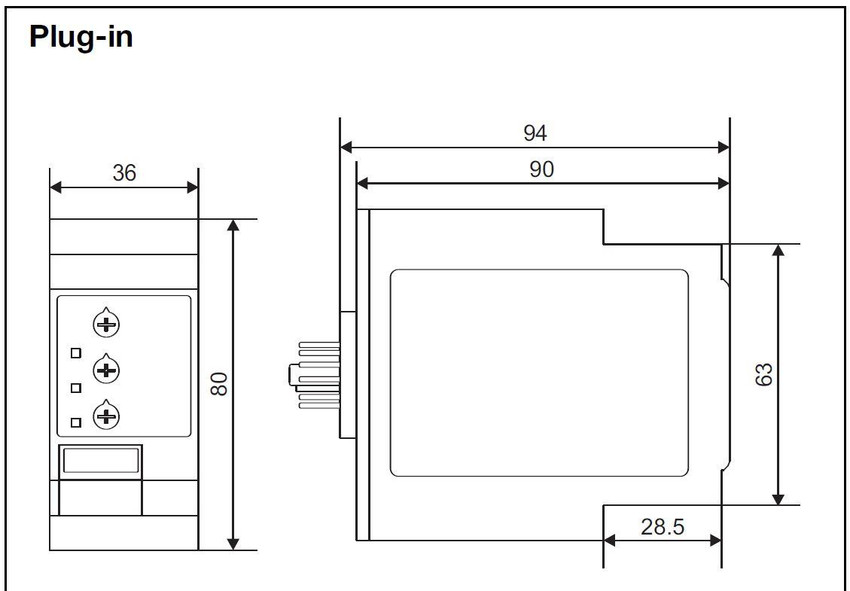

- 22.5 mm Euronorm housing (DPB01) or 36 mm plug-in module (PPB01)
- LED indication for relay, alarm and power supply ON
