DPA53CM48
Alt: Minimum Order 1 is Limited to Available Stock Only! Then the Minimum will be 5 Pieces.
$123.20

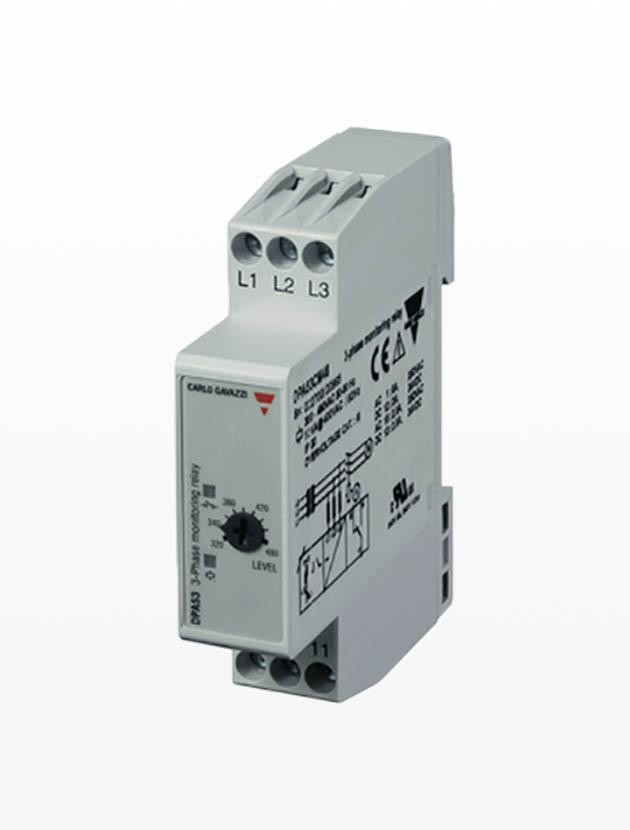

Monitoring Relay, 3-Phase, 380-480VAC, 5A, SPDT, 17.5mm DIN Rail Mount
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Monitoring Relay, 3-Phase, 380-480VAC, 5A, SPDT, 17.5mm DIN-Rail Mount
Specifications
Amp Rating
5 Amp
Monitoring Relay Type
Phase Monitoring
Phase
Three Phase
Poles
SPDT
All - Voltage
380-480VAC
Warranty
1 Year
Alternate Part Number
Minimum Order 1 is Limited to Available Stock Only! Then the Minimum will be 5 Pieces.
Weight
0.25
Quantity
3
Features Include:
- 3-phase monitoring relay for phase sequence and phase loss
- Detects when all phases are present and have the correct sequence
- Knob-adjustable undevoltage detection
- Measures its own power supply
- Power supply range: 208 to 240 and 380 to 480 VAC (±15%)
- Output: 5 A SPDT relay normally energized
- For mounting on DIN-rail in accordance with DIN/EN 50 022
- 17.5 mm DIN-rail housing (DIN 43880)
- LED indication for relay and power supply ON
