DPA01DM23
Alt: Minimum Order 5 Pieces, Price per Piece
$95.20

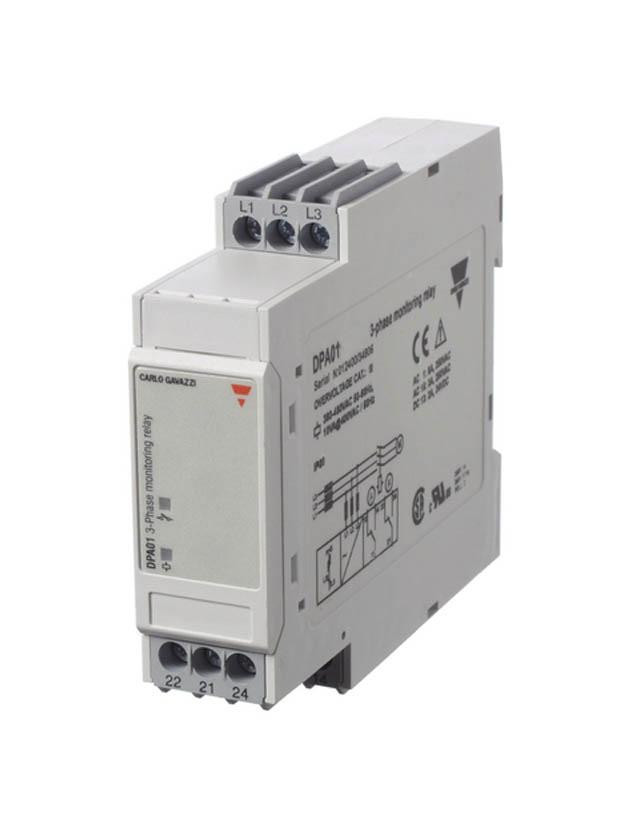

Monitoring Relay, 3-Phase, 208-240VAC, 8A, DPDT, DIN Rail Mount
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 5 units
Description
Monitoring Relay, 3-Phase, 208-240VAC, 8A, DPDT, DIN Rail Mount
Features Include:
- 3-phase monitoring relays for phase sequence and phase loss
- Detect when all 3 phases are present and have the correct sequence
- Measure their own power supply
- Power supply range: 208 to 690 VAC (+10 -15%)
- Output: 8 A SPDT relay or 8 A DPDT normally energized
- For mounting on DIN-rail in accordance with DIN/EN 50 022 (DPA01) or plug-in module (PPA01)
- 22.5 mm Euronorm housing (DPA01) or 36 mm plug-in module (PPA01)
- LED indication for relay and power supply ON
