DIB01CD4810A
Alt: Minimum Order 5 Pieces, Price per Piece, *Includes Tariff
$139.58
Monitoring Relay, Single Phase, 1-10A AC/DC, SPDT, 24-48VAC/DC, DIN Rail Mount, This Item Includes a Tariff That The Manufacturer Has Added
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 5 units
Description

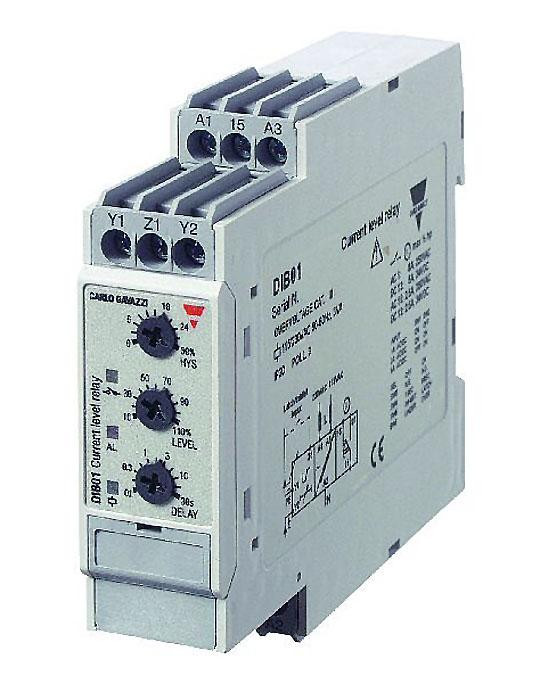

Monitoring Relay, 1-Phase, 1-10A AC/DC, SPDT, 24-48VAC/DC, DIN-Rail Mount
Specifications
Alternate Part Number
Minimum Order 5 Pieces, Price per Piece, *Includes Tariff
Amp Rating
See Spec
Monitoring Relay Type
See Spec
Phase
Single Phase
Poles
SPDT
All - Voltage
24-48 VAC/DC
Warranty
1 Year
Weight
0.5
Features Include:
- TRMS AC/DC over or under current monitoring relay
- Current measuring through internal shunt
- Selection of measuring range by DIP-switches
- Measuring ranges from 0.1 mA to 10 A AC/DC
- Adjustable current on relative scale
- Adjustable hysteresis on relative scale
- Adjustable delay function (0.1 to 30 s)
- Programmable latching or inhibit at set level
- Output: 8 A SPDT relay N.D. or N.E. selectable
- For mounting on DIN-rail in accordance with DIN/EN 50 022 (DIB01) or plug-in module (PIB01)
- 22.5 mm Euronorm housing (DIB01) or 36 mm plug-in module (PIB01)
- LED indication for relay, alarm and power supply ON
- Galvanically separated power supply
