02050068UL

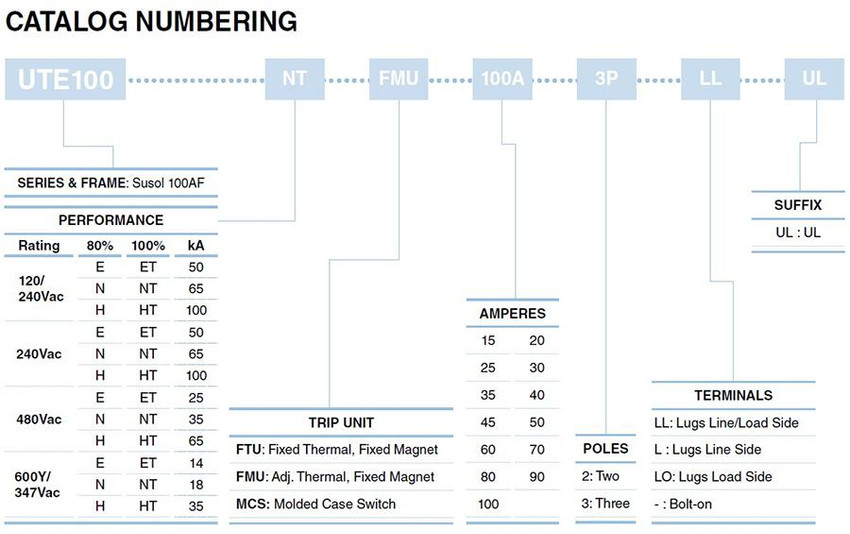

Alt: 2050068UL, UTE100N FTU 25A 3P LL UL
$334.94

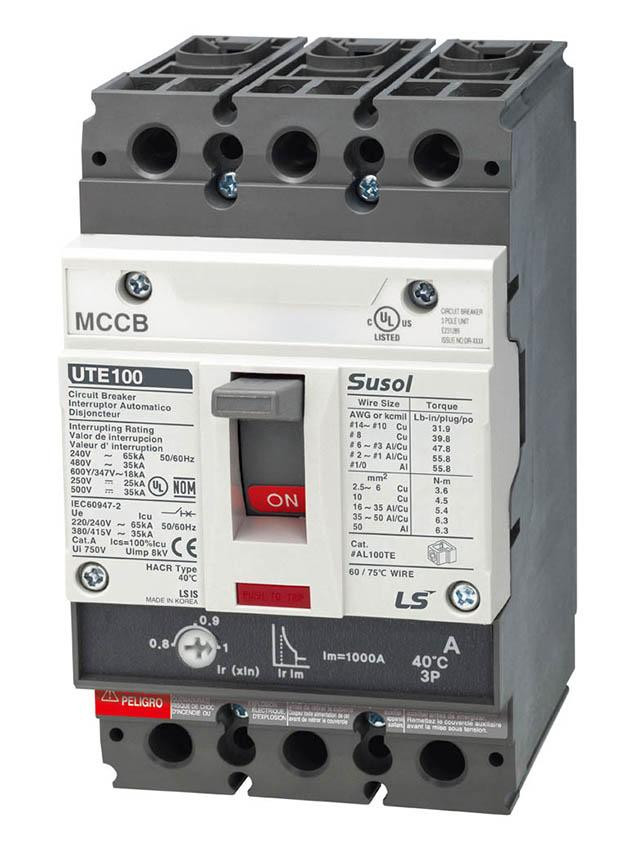

MCCB, 3-Pole, 25 Amp,35kA@480VAC, Fixed Thermal/Magnetic, Lugs Line/Load Side, 5.12 x 2.99 x 3.44" (HWD), Susol UL MCCB UTE100 Series, UL Listed, Molded Case Circuit Breaker
- Weight:
- 2.50 LBS
- Minimum Purchase:
- 1 unit
Description
LS Electric is a global manufacturer of electrical power distribution equipment that includes circuit breakers and motor starters as well as variable frequency drives and HMIs.
LS Electric America, formerly LG Industrial Systems and LSIS, is a subsidiary of LS Electric headquartered in South Korea.
Series Features Include:
- UTE100 breaker is HACR rated
- SWD switch duty rating (applied only to 15 and 20A /347Vac or less)
- HID high intensity discharge lighting rating (15~50A /480Vac or less)
- Insulation Voltage: 750 VAC
- Impulse Withstand Voltage, Uimp: 8kVac
- 2-Pole Dimensions (W x H x D): 2.01 in (51mm) 5.12in (130mm) 3.44in (87.5mm)
- 3-Pole Dimensions (W x H x D): 2.99 in (76mm) 5.12in (130mm) 3.44in (87.5mm)
Interrupting Capacity (kA rms) AC 50/60Hz:
- 120/240V: 50kVA
- 240V: 50kVA
- 480V: 25 kVA
- 600Y 347V: 14 kVA
Interrupting Capacity (kA) DC:
- 250V dc-2P: 16kVA
- 500V dc-3P: 25kVA
Technical Information:
