02050260UL
LS Electric

02050260UL

Alt: 2050260UL, UTE100E FTU 45A 3P LL UL

$281.34

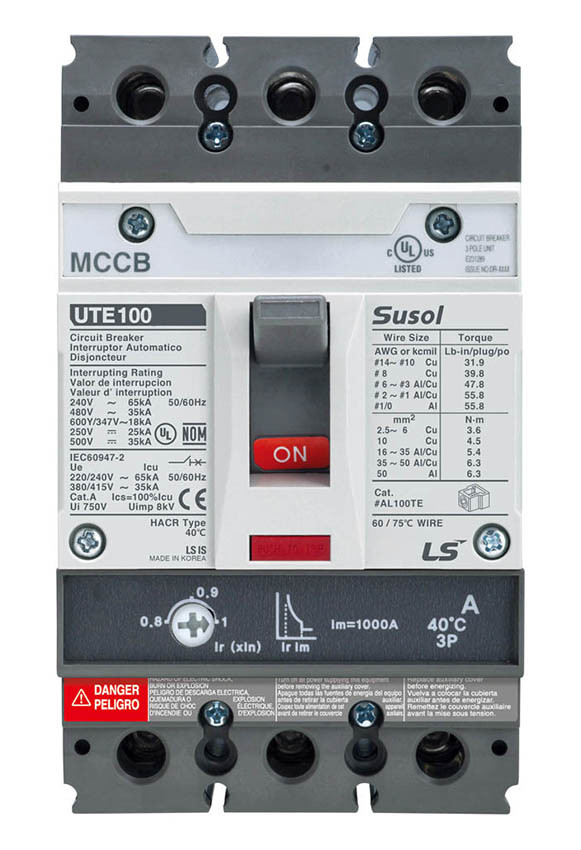

MCCB, 3-Pole, 45 Amp, 25kA@480VAC, Fixed Thermal/Magnetic, Lugs Line/Load Side, 5.12 x 2.99 x 3.44" (HWD), Susol UL MCCB UTE100 Series, UL Listed, Molded Case Circuit Breaker

Weight:
2.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
LS Electric is a global manufacturer of electrical power distribution equipment that includes circuit breakers and motor starters as well as variable frequency drives and HMIs.

LS Electric America, formerly LG Industrial Systems and LSIS, is a subsidiary of LS Electric headquartered in South Korea.

Series Features Include:

  • UTE100 breaker is HACR rated
  • SWD switch duty rating (applied only to 15 and 20A /347Vac or less)
  • HID high intensity discharge lighting rating (15~50A /480Vac or less)
  • Insulation Voltage: 750 VAC
  • Impulse Withstand Voltage, Uimp: 8kVac
  • 2-Pole Dimensions (W x H x D): 2.01 in (51mm) 5.12in (130mm) 3.44in (87.5mm)
  • 3-Pole Dimensions (W x H x D): 2.99 in (76mm) 5.12in (130mm) 3.44in (87.5mm)

Interrupting Capacity (kA rms) AC 50/60Hz:

  • 120/240V: 50kVA
  • 240V: 50kVA
  • 480V: 25 kVA
  • 600Y 347V: 14 kVA

Interrupting Capacity (kA) DC:

  • 250V dc-2P: 16kVA
  • 500V dc-3P: 25kVA
