MK V12D45-R16
$15.79

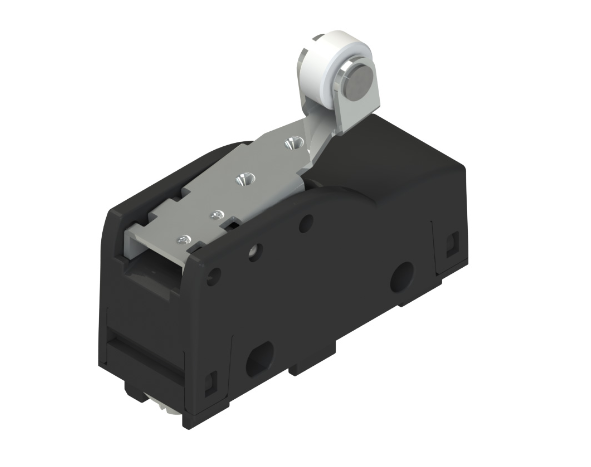

Microswitch with Short Roller Lever
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pizzato Elettrica is an Italian manfucturer of position switches, safety products, microswitches, foot switches and signaling devices.
They opened their US office and warehouse in 2018.

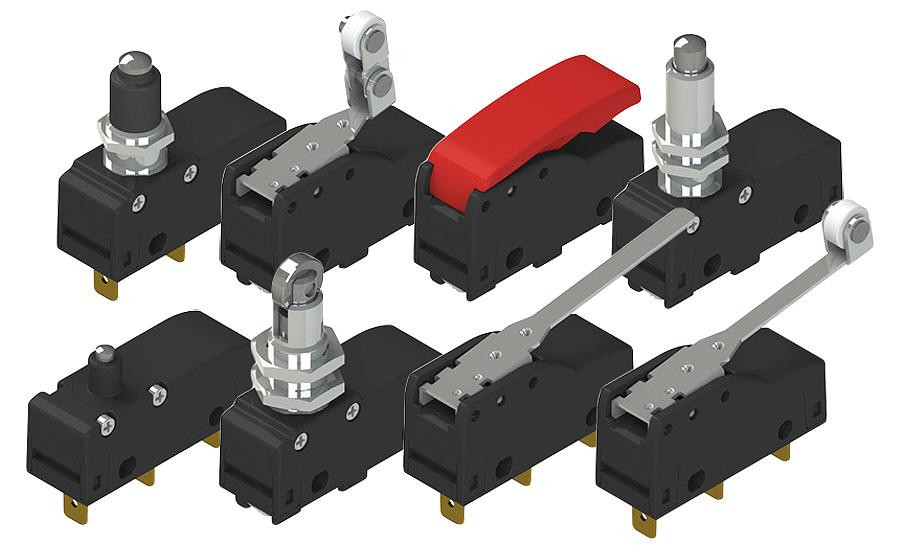

Series Features Include:
- Glass fiber reinforced technopolymer, self-extinguishing and shock-proof housing
- Protection degree IP00 (without terminal cover), IP20 (with terminal covers VF C01, VF C03), IP40 (with terminal covers VF MKCx1x, VF C02) or IP65 (with terminal covers VF MKCx22 + MK Vx2xxx or VF MKCx23 + MK Hx2xxx)
- 4 terminal types available (MK V: screw with self-lifting plate, MK H: vertical faston, MK F: faston, 45° bend to the right, MK G: faston, 45° bend to the left (on request)
- 52 actuators available
- Versions with positive opening
- Versions with gold-plated silver contacts
- Terminal covers with strain relief cable gland
- Thermal current (Ith): 16 A
- Rated insulation voltage (Ui): 250 VAC 300 VDC
- Rated impulse withstand voltage (Uimp): 4 kV
