Product image is representative only, please verify specifications.
MK H11D45-R16
$12.86

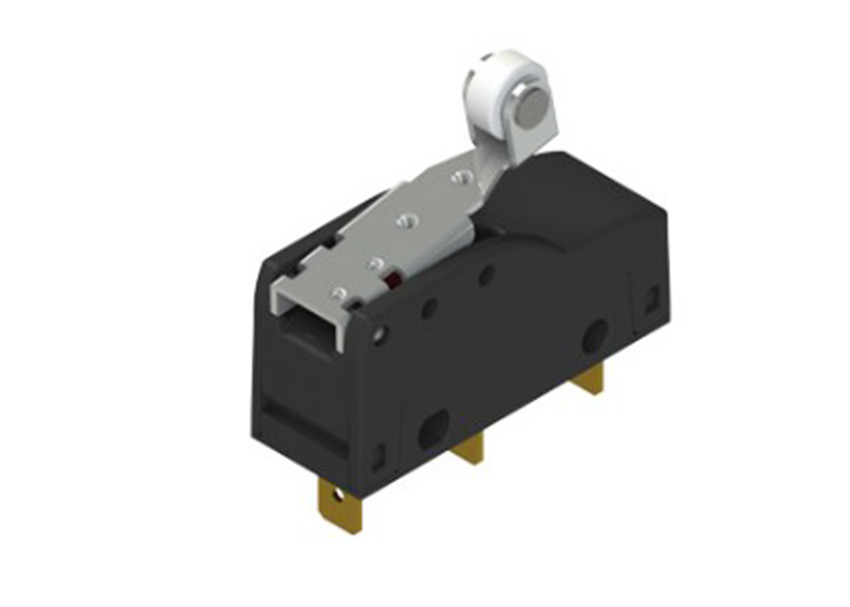

Microswitch with Short Roller Lever
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pizzato Elettrica is an Italian manfucturer of position switches, safety products, microswitches, foot switches and signaling devices.
They opened their US office and warehouse in 2018.
Specifications
Illuminated/Non-Illuminated
Non-Illuminated
Material
See Spec
Normally Open/Closed
See Spec
Pushbutton Type
See Spec
Size
See Spec
Type of Product
MicroSwitch
Warranty
1 Year
Weight
0.1

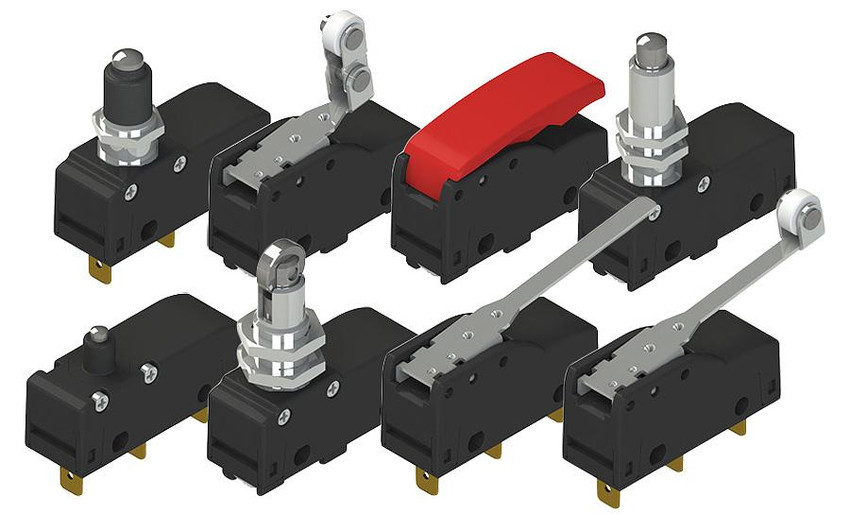

Series Features Include:
- Glass fiber reinforced technopolymer, self-extinguishing and shock-proof housing
- Protection degree IP00 (without terminal cover), IP20 (with terminal covers VF C01, VF C03), IP40 (with terminal covers VF MKCx1x, VF C02) or IP65 (with terminal covers VF MKCx22 + MK Vx2xxx or VF MKCx23 + MK Hx2xxx)
- 4 terminal types available (MK V: screw with self-lifting plate, MK H: vertical faston, MK F: faston, 45° bend to the right, MK G: faston, 45° bend to the left (on request)
- 52 actuators available
- Versions with positive opening
- Versions with gold-plated silver contacts
- Terminal covers with strain relief cable gland
- Thermal current (Ith): 16 A
- Rated insulation voltage (Ui): 250 VAC 300 VDC
- Rated impulse withstand voltage (Uimp): 4 kV
