Weg
CWC025-00-30V56

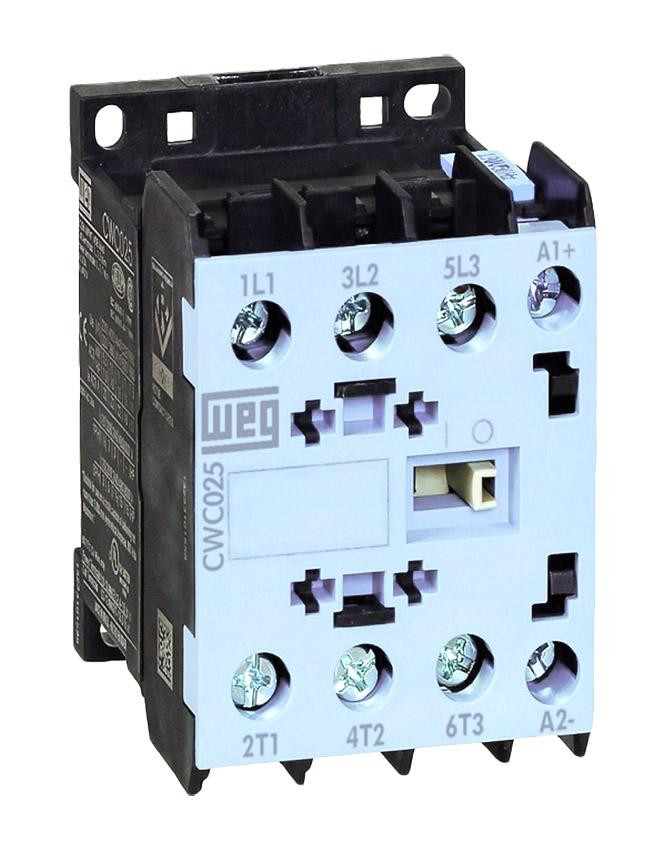

Mini Contactor, 22 Amp, 3NO Power Poles, 500V 50Hz/600V 60Hz, Screw Terminal, IP20, 2.29" x 1.77" x 2.20" (HWD), CWC Series
$23.25
Available Now!
Available Now!
(1 in stock)
CWC025-00-30V04
Alt: 12486674
$23.25
Mini Contactor, 22A, 3NO, 24V Coil Voltage, 60Hz, Screw Terminal
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Our WEG CWC series of mini contactors are a compact and powerful solution for circuit switching and control operation.
This series is available in three pole and four pole up to 15hp at 460VAC (22A). This series features more horsepower for its size than any other miniature contactor on the market!
- CWC0: Miniature power contactors
- CWCA0: Miniature contactor control relay with AC or DC coil
Features Include:
- Rated current In - AC-3 (Ue ≤ 440 V): 22 A (25)
- Rated current In - AC-4 9 A
- Main contact: 3 NO
- Control voltage: 20V 50Hz/24V 60Hz
- Terminal type: Screw
- Rated operational Current Ie AC-1 (¿ = 55 ºC): 32 A
- Rated operational voltage Ue - IEC 60947-4-1: 690 V
- Rated operational voltage Ue - UL/CSA: 600 V
- Height: 58,1 mm (2.29 in)
- Width: 45 mm (1.77 in)
- Depth: 56 mm (2.20 in)
- Gross weight: 202 g
- Degree of protection IP (IEC 60529) - Main circuit: IP20
Technical Information:
Learn more about Contactors, Starters & Overload Relays here!
