$32.00
Available Now!
Available Now!
(4 in stock)
CGMS-12A-24-10
Alt: Minimum Order 1 is Limited to Available Stock Only! Then the Minimum will be 10 Pieces.
$32.00

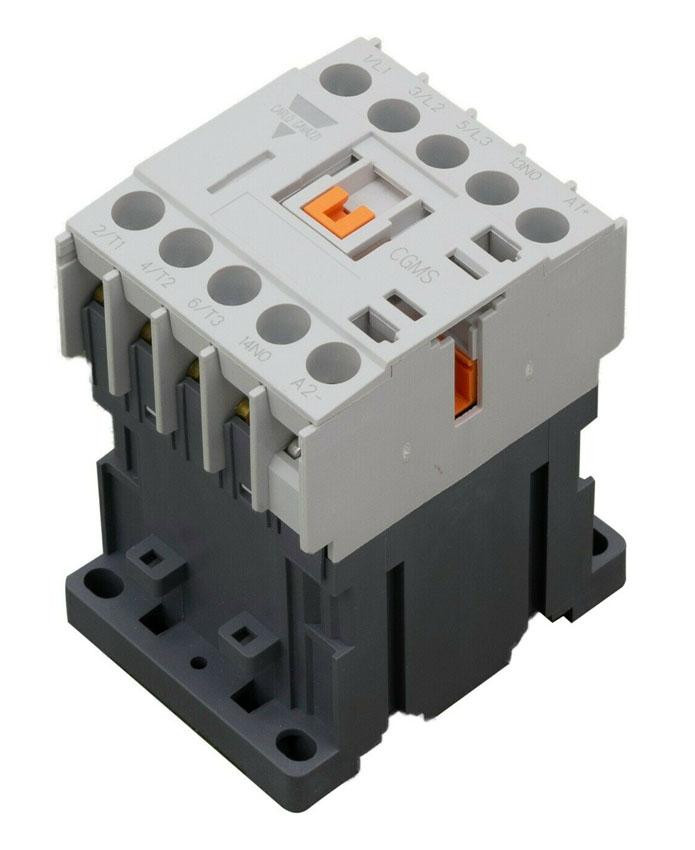

Mini-Contactor, 12A, 24VAC, Screw Clamp, 1NO
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Mini-Contactor, 12A, 24VAC, Screw Clamp, 1NO
Features Include:
Continuous Current lth: 20A
Motor AC Single Phase:
- 115V: 1HP
- 230V: 2HP
Motor AC Three Phase:
- 230V: 3HP
- 460V: 7.5HP
- 575V: 7.5HP
IEC Rating:
- AC1: 20A
- Motor AC AC3:
- 200~240V: 3kW 12A
- 380~440V: 5.5kW 12A
- 690V: 4kW 5A
Coil Voltages
- AC Coil
- VAC 50/60Hz: 24, 36, 42, 48, 110, 115, 120, 127, 200/208, 220, 220/230, 230/240, 256, 277, 380/400, 400, 440, 480, 500, 550
- DC Coil:
- (std. consumption) VDC: 12, 20, 24, 36, 42, 48, 60, 72, 110, 120, 125, 200, 240, 250
- (low consumption) VDC: 12, 20, 24, 48, 72, 100, 110
Basic Dimensions (W x H x D mm):
- AC Coil Version: 45 x 58 x 57
- DC Coil Version: 45 x 58 x 59
Accessories:
- Auxiliary Contacts, Standard: 1NO or 1NC
- Optional: Top Mount AX-2M (2NO, 1NC/1NO or 2NC) or Top Mount AX-4M (4NO, 3NO/1NC, 2NO/2NC, 1NO/3NC or 4NC)
- Mechanical Interlock: AR-12MW
- Surge Units: AS-12M
Need More Information?
Learn more about Contactors, Starters & Overload Relays here!
