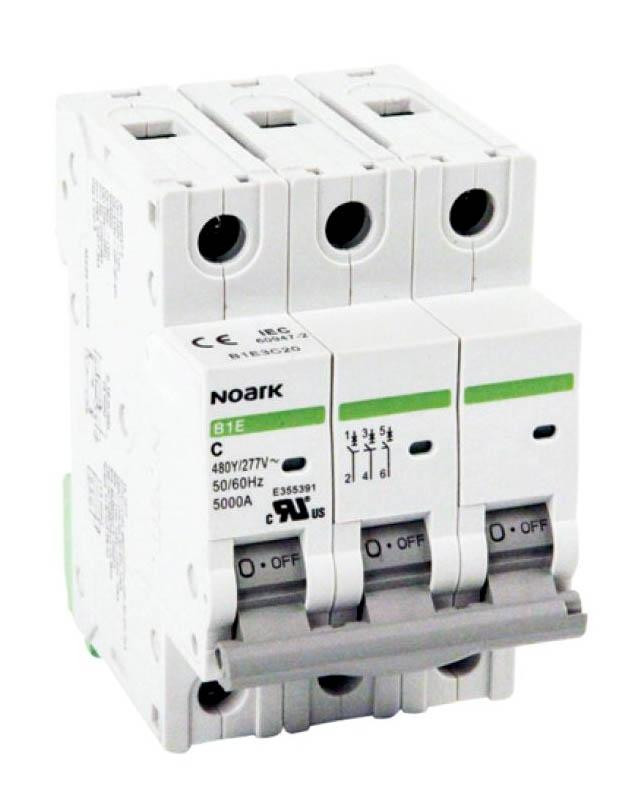

Noark UL1077 miniature circuit breakers, the B1E series, are designed for supplementary protection. Applications include control circuits, lighting, business equipment and appliances.
Noark UL1077 miniature circuit breakers, the B1E series, are designed for supplementary protection. Applications include control circuits, lighting, business equipment and appliances.
This series have standard ratings of 5kA at 480Y/277VAC.
The B1E series replaced the Chint NB1 series.
Noark also carries UL489 circuit breakers, including the B1H and B1N series. UL489 circuit breakers are designed for branch circuit protection. Applications include motor control circuits, load circuits leaving the equipment, HVAC, PLC I/O points, power supplies, UPS and power conditioners.
All NOARK circuit breakers mount on standard 35 mm DIN rail.
Series Features Include:
Complete range of UL1077 listed miniature circuit breakers
Up to a 63A current rating
Standard 35 mm DIN rail mounting
Standard ratings of 5 kA at 480Y/277 VAC
Suitable for supplementary protection
Thermal-magnetic over current protection
Three levels of short-circuit protection - Choose from B, C or D curves
Trip-free design - Breaker cannot be defeated by holding the handle in the ON position
Captive screws cannot be lost
UL 1077, IEC 60947-2 Standard
Field installable shunt trip and auxiliary switch subsequent mounting
18 mm width (per pole)
Contact position indicator (red/green)
Possibility for locking the toggle in ON or OFF position
Typical applications for supplementary protection: Control circuits, lighting, business equipment, appliances
Series ExB1E/B1E - This series replaced the Chint NB1 series
