B1E2C15
Alt: 1000514
$22.95

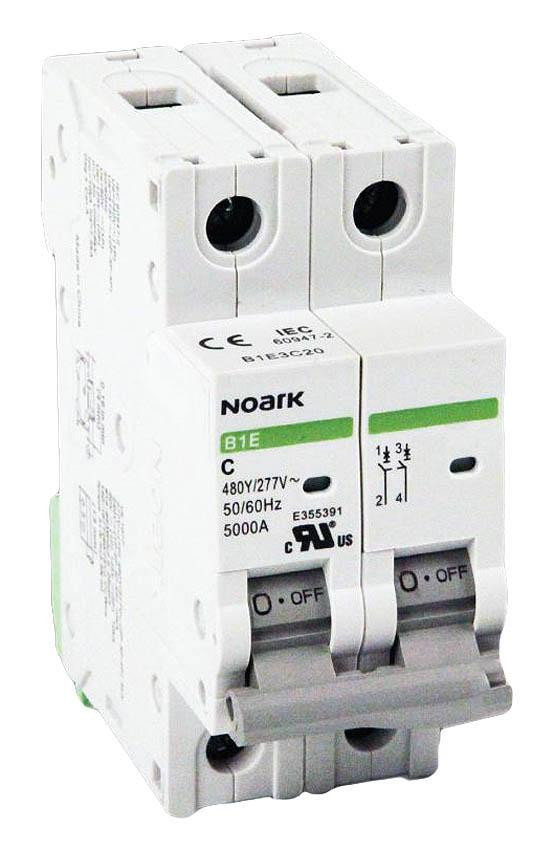

Miniature Circuit Breaker, UL1077, 2-Poles, C-Curve, 15A, 5kA, 480Y/277VAC, Supplementary Protection
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- Complete range of UL1077 listed miniature circuit breakers
- Up to a 63A current rating
- Standard 35 mm DIN rail mounting
- Standard ratings of 5 kA at 480Y/277 VAC
- Suitable for supplementary protection
- Thermal-magnetic over current protection
- Three levels of short-circuit protection - Choose from B, C or D curves
- Trip-free design - Breaker cannot be defeated by holding the handle in the ON position
- Captive screws cannot be lost
- UL 1077, IEC 60947-2 Standard
- Field installable shunt trip and auxiliary switch subsequent mounting
- 18 mm width (per pole)
- Contact position indicator (red/green)
- Possibility for locking the toggle in ON or OFF position
- Typical applications for supplementary protection: Control circuits, lighting, business equipment, appliances
- Series ExB1E/B1E - This series replaced the Chint NB1 series
Technical Information:
