NOARK offers a full line of circuit protection and industrial controls. Products include circuit breakers, motor contactors, overload relays, safety contactors and relays.
CHINT's NOARK electrical products were originally released in Shanghai in 2009. Shortly after they re-branded CHINT to the NOARK brand in the United States.
Noark offers a 5-year limited warranty on all of their products!
Series Features Include:
Complete range of UL1077 listed miniature circuit breakers
Up to a 63A current rating
Standard 35 mm DIN rail mounting
Standard ratings of 5 kA at 480Y/277 VAC
Suitable for supplementary protection
Thermal-magnetic over current protection
Three levels of short-circuit protection - Choose from B, C or D curves
Trip-free design - Breaker cannot be defeated by holding the handle in the ON position
Captive screws cannot be lost
UL 1077, IEC 60947-2 Standard
Field installable shunt trip and auxiliary switch subsequent mounting
18 mm width (per pole)
Contact position indicator (red/green)
Possibility for locking the toggle in ON or OFF position
Typical applications for supplementary protection: Control circuits, lighting, business equipment, appliances

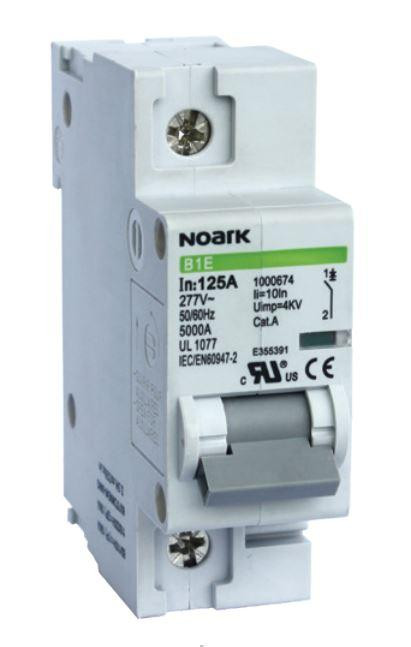

Series ExB1E/B1E - This series replaced the Chint NB1 series
