B1H1C20
Alt: 1000750
$18.11

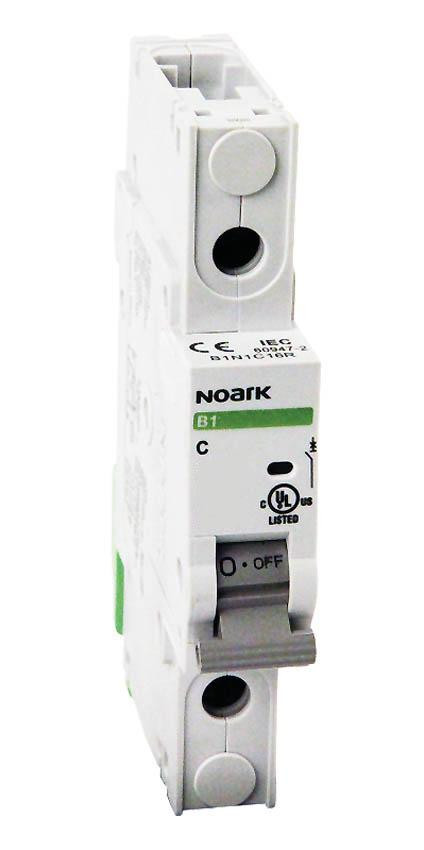

Miniature Circuit Breaker, UL489, 1-Pole, C-Curve, 20A, 277VAC, 10kA, Box Lugs
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- Complete range of UL 489 listed miniature circuit breakers up to a 63 A current rating
- Breakers mount on standard 35 mm DIN rail
- Standard ratings of 10 kA at 240 VAC and 10 kA at 60 VDC (1P) /125 VDC (2P)
- Suitable for branch circuit device protection
- Trip-free design - breaker cannot be defeated by holding the handle in the ON position
- Captive screws cannot be lost
- For use in applications for which UL 1077 or CSA C22.2 No.235 are also allowed
- Field installable shunt trip and auxiliary switch subsequent mounting
- Available with provisions for ring tongue terminals
- Module width of only 0.71 in (18 mm) per pole
- Contact position indicator (red/green)
- Possibility for locking the toggle in ON or OFF position
Technical Information:
