B1E1B15
Alt: 1000430
$11.48

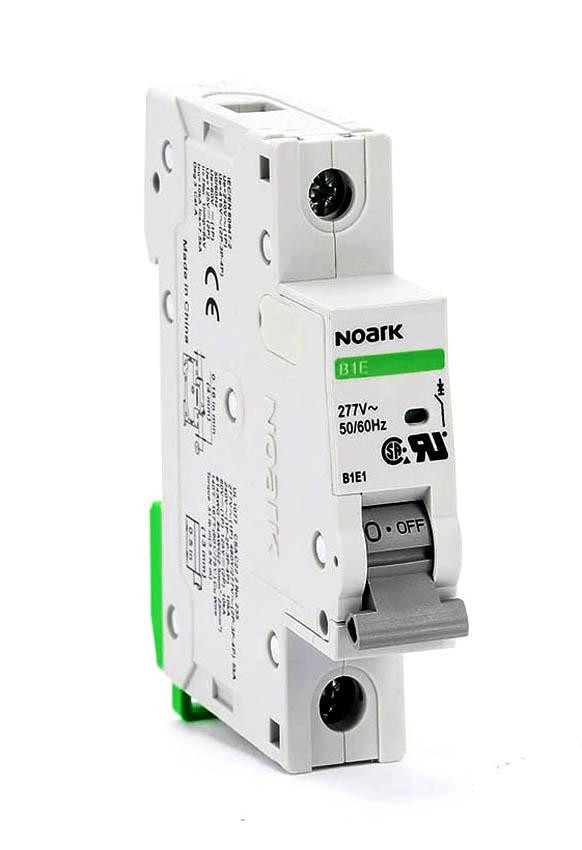

Miniature Circuit Breaker, UL1077, 1-Pole, B-Curve, 15A, 5kA, 277VAC, Supplementary Protection
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
NOARK offers a full line of circuit protection and industrial controls. Products include circuit breakers, motor contactors, overload relays, safety contactors and relays.
CHINT's NOARK electrical products were originally released in Shanghai in 2009. Shortly after they re-branded CHINT to the NOARK brand in the United States.
Noark offers a 5-year limited warranty on all of their products!
Series Features Include:
- Complete range of UL1077 listed miniature circuit breakers
- Up to a 63A current rating
- Standard 35 mm DIN rail mounting
- Standard ratings of 5 kA at 480Y/277 VAC
- Suitable for supplementary protection
- Thermal-magnetic over current protection
- Three levels of short-circuit protection - Choose from B, C or D curves
- Trip-free design - Breaker cannot be defeated by holding the handle in the ON position
- Captive screws cannot be lost
- UL 1077, IEC 60947-2 Standard
- Field installable shunt trip and auxiliary switch subsequent mounting
- 18 mm width (per pole)
- Contact position indicator (red/green)
- Possibility for locking the toggle in ON or OFF position
- Typical applications for supplementary protection: Control circuits, lighting, business equipment, appliances
- Series ExB1E/B1E - This series replaced the Chint NB1 series
Technical Information:
