CC75SA120
Carlo Gavazzi

CC75SA120

Alt: Minimum Order 5 Pieces, Price per Piece

$144.00

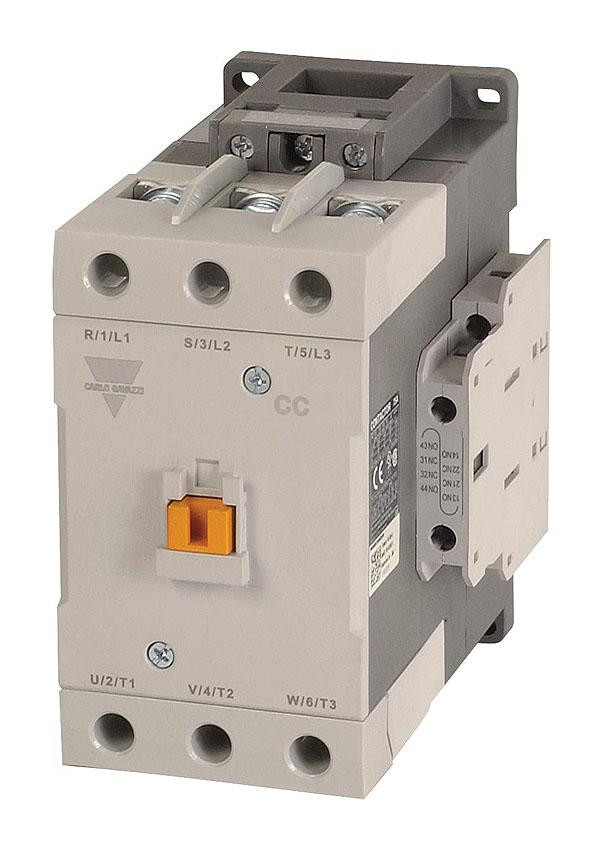

Midi-Contactor, 3-Pole, 75A, 120VAC, Screw Type

Weight:
4.25 LBS
Minimum Purchase:
5 units
Adding to cart… The item has been added

Have you heard about our rewards program, Pack Perks? Learn all about it here!

Description
Midi-Contactor, 3-Pole, 75A, 120VAC, Screw Type

Features Include:

Continuous Current: 110A

Motor AC Single Phase:

  • 110~120VAC = 5HP
  • 220~240VAC = 15HP

Motor AC Three Phase:

  • 220~240VAC = 30HP
  • 440~480VAC = 50HP
  • 550~600VAC = 60HP

IEC Rating:

  • Resistive AC1, 690VAC max: 110A
  • Motor AC3:
    • 200~240VAC: 22kW 75A
    • 380~440VAC: 37kW 75A
    • 500~550VAC: 37kW 64A
    • 690VAC: 37kW 42A

Coil Voltages

  • AC Coil
    • VAC 50/60Hz: 24, 48, 100, 110, 120, 200, 220, 230, 240, 380, 415, 440, 500, 550 VAC
    • VAC 60Hz: 24, 48, 100, 110, 120, 200, 208, 220, 230, 240, 277, 380, 440, 480, 600 VAC
    • VAC 50Hz: 24, 32, 36, 42, 48, 80, 100, 110, 220, 230, 240, 380, 400, 415, 440, 500, 550 VAC
  • AC/DC Coil:
    • VDC: 12, 20, 24, 48, 60, 80, 100, 110, 125, 200, 220, 250 VDC

Basic Dimensions (W x H x D mm):

  • AC Coil: 94 x 140 x 136
  • DC Coil (with standard set of aux. contacts): 94 x 140 x 173

Accessories:

  • Auxiliary Contacts, Standard: 2NO2NC
  • Optional: Top Mount
  • Mechanical Interlock: GUR02
  • Power Connector for Reversing Contactors: GUW95
