Carlo Gavazzi

CC65LA120

Alt: CC Series

$139.20

Midi-Contactor, 3-Pole, 65A, 120, Lug Type

Minimum Purchase:
10 units
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
CC65LA120
CC65LA120
CC65LA120
CC65LA120
CC65LA120
CC65LA120
Description
Midi-Contactor, 3-Pole, 65A, 120 Lug Type

Features Include:

Continuous Current: 100A

Motor AC Single Phase:

  • 110~120VAC = 5HP
  • 220~240VAC = 15HP

Motor AC Three Phase:

  • 220~240VAC = 30HP
  • 440~480VAC = 50HP
  • 550~600VAC = 60HP

IEC Rating:

  • Resistive AC1, 690VAC max: 100A
  • Motor AC3:
    • 200~240VAC: 18.5kW 65A
    • 380~440VAC: 30kW 65A
    • 500~550VAC: 33kW 60A
    • 690VAC: 33kW 35A

Coil Voltages

  • AC Coil
    • VAC 50/60Hz: 24, 48, 100, 110, 120, 200, 220, 230, 240, 380, 415, 440, 500, 550 VAC
    • VAC 60Hz: 24, 48, 100, 110, 120, 200, 208, 220, 230, 240, 277, 380, 440, 480, 600 VAC
    • VAC 50Hz: 24, 32, 36, 42, 48, 80, 100, 110, 220, 230, 240, 380, 400, 415, 440, 500, 550 VAC
  • AC/DC Coil:
    • VDC: 12, 20, 24, 48, 60, 80, 100, 110, 125, 200, 220, 250 VDC

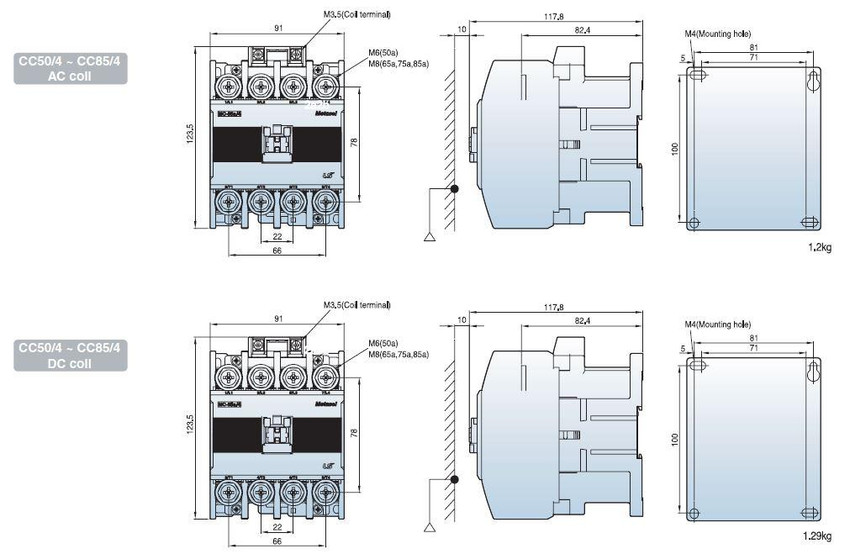

Basic Dimensions (W x H x D mm):

  • AC Coil: 79 x 106 x 119
  • DC Coil (with standard set of aux. contacts): 79 x 106 x 147

Accessories:

  • Auxiliary Contacts, Standard: 2NO2NC
  • Optional: Top Mount
  • Mechanical Interlock: GUR02
  • Power Connector for Reversing Contactors: GUW63
