$23.08
Product image is representative only, please verify specifications.
MS 54
Alt: Being Replaced by MK V11R40
$13.99

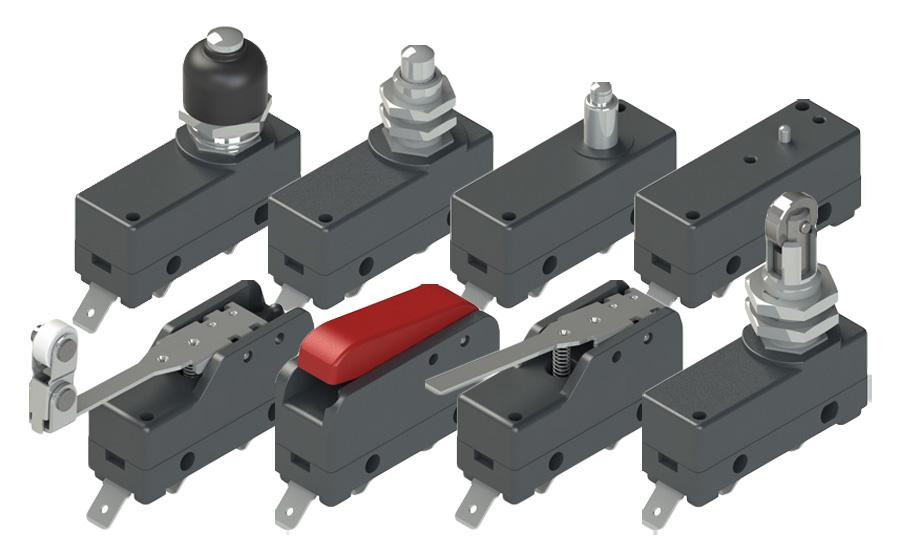

MicroSwitch with Roller Lever
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pizzato Elettrica is an Italian manfucturer of position switches, safety products, microswitches, foot switches and signaling devices.
They opened their US office and warehouse in 2018.
Specifications
Alternate Part Number
Being Replaced by MK V11R40
Illuminated/Non-Illuminated
Non-Illuminated
Material
See Spec
Normally Open/Closed
See Spec
Pushbutton Type
See Spec
Size
See Spec
Type of Product
MicroSwitch
Warranty
1 Year
Weight
0.1000
Series Features Include:
- Glass-reinforced polymer, self-extinguishing, shock-proof thermoplastic resin housing
- Protection degree IP20 or IP40
- 4 terminal types available (MS: solder terminals, MV: screw terminals, MF: faston terminals, MM: mantle terminals)
- 32 actuators available
- Thermal current (lth): 16 A
- Rated insulation voltage (Ui): 250 VAC 300 VDC
- Operation voltage (Ue): 250 VAC (50 Hz)
- Operation current (le): 5 A
