8024009084

8024009084

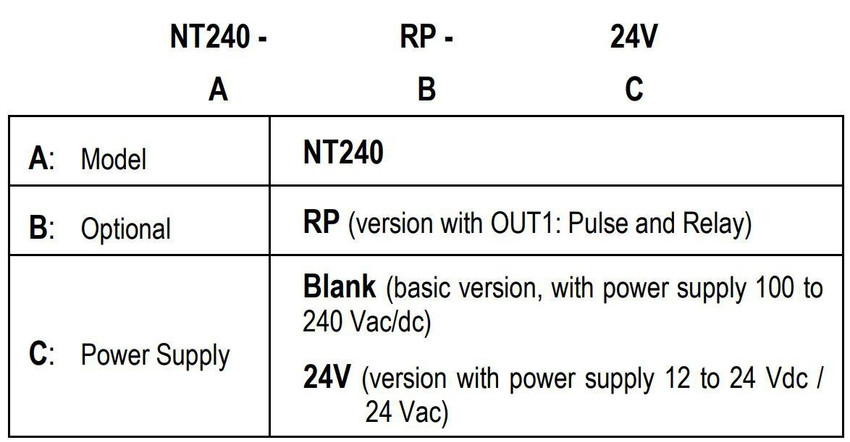

Alt: NT240-RP 24V

$109.00

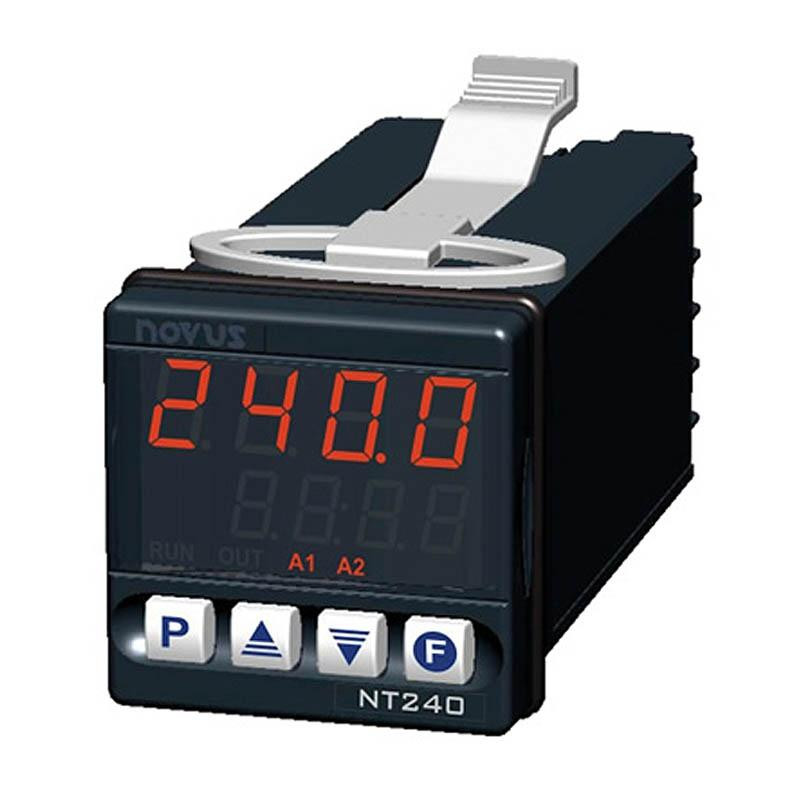

Microprocessor Based Timer, 24VAC/DC, 11 Timer Functions, SPST, 4-Digit, 48x48mm

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Microprocessor Based Timer 48x48 mm Timers, Weekly Timers & Counters

Features Include:

  • Input types: NPN/PNP sensors; NO/NC dry contact
  • Outputs: 1 SPST Relay 3 A / 250 Vac (3 A / 30 Vdc); 1 voltage pulse 5 V / 25 mA
  • Accuracy: 0.1% of displayed time
  • Response time: 10 ms for the relay output and 0.3ms for the pulse output
  • Time base: 7 scales, from 99.99 seconds to 9999 hours
  • Auxiliary power supply: 12 Vdc  ±10 % / 50 mA
  • Dual 4-digit display
  • UP or DOWN time counting (decimal or hour:minute:second)
  • Power: 100 to 240 Vac/da ±10 %, 50/60 Hz or 24 Vdc/ac, 50/60 Hz
  • Maximum consumption: 3 VA
  • Operating environment: 5 to 50 °C, 30 to 80% humidity
  • Dimensions: 48 x 48 x 110 mm.  Panel cutout: 45.5 to 45.5 mm
  • Silicone rubber keypad
  • Front panel: IP65, Polycarbonate UL94 V-2
  • Back panel: IP30, ABS+PC UL94 V-0
  • Rated CE and UL
