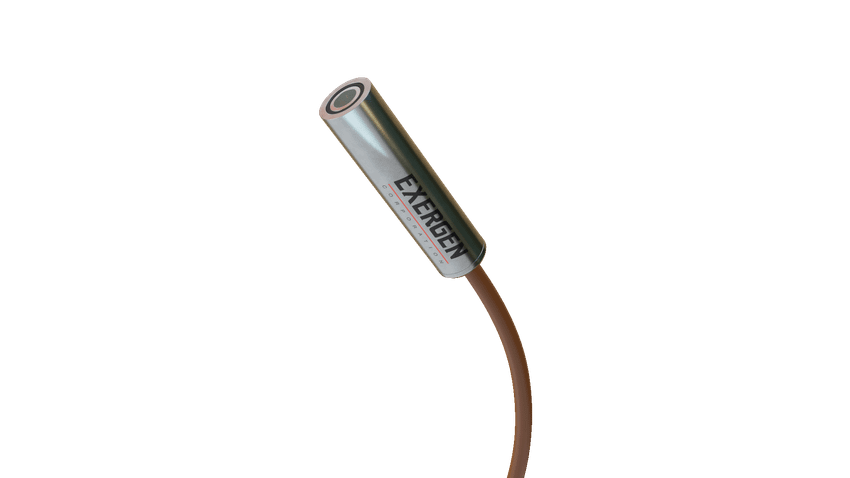

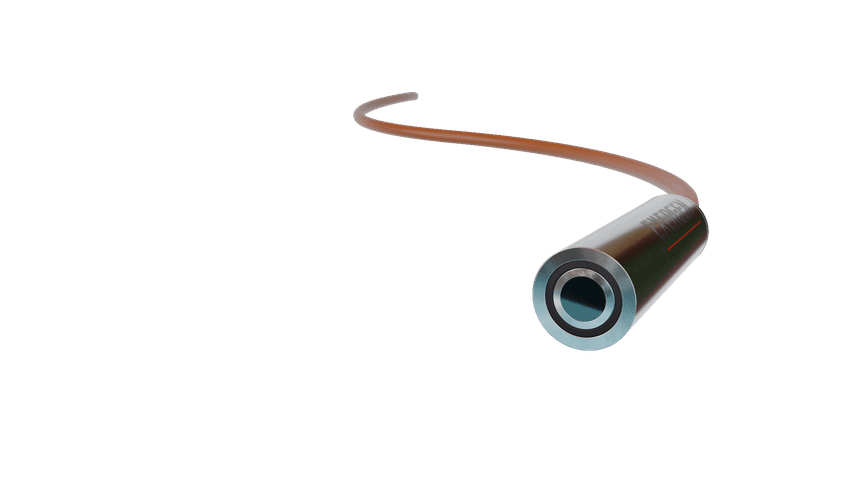

UIRT/C-K-80F-Unshielded

Exergen has three main divisions; consumer medical, professional medical and industrial automation products. We are your authorized Exergen distirbutor for their industrial division.



Exergen is the leader in infrared thermocouples and has the world's only self powered one. They also offer microscanners and thermal switches. Their products are invented, assembled, tested and packaged in the USA! Exergen is headquartered in Watertown, Massachusetts.

Features Include:

• Ambient Temperature Range: -40 to 212°F (-40 to 100 °C)
• Sensing Range: 0 to 975°F (-18 to 524 °C) with linearization at readout
• Field-of-View: approximately 1:2 (100°)
• Minimum Spot Size: 3 mm (.1”)
• Spectral Response: 5.5 to 20 µm
• Output: K type thermocouple
• Cable: 3 feet of unshielded, duplex insulated, type K, 24 AWG, PFA jacket rated to 500 o F (260 o C) (Shielded cable available upon request)
• Impedance: 15 – 40 Kohms, varies depending on temperature range
• Resolution: Approximately 0.0003°C (Johnson Noise limited)
• Response Time: 50 millisecond time constant (typical)
• Accuracy (Interchangeability): 1% to factory calibration conditions

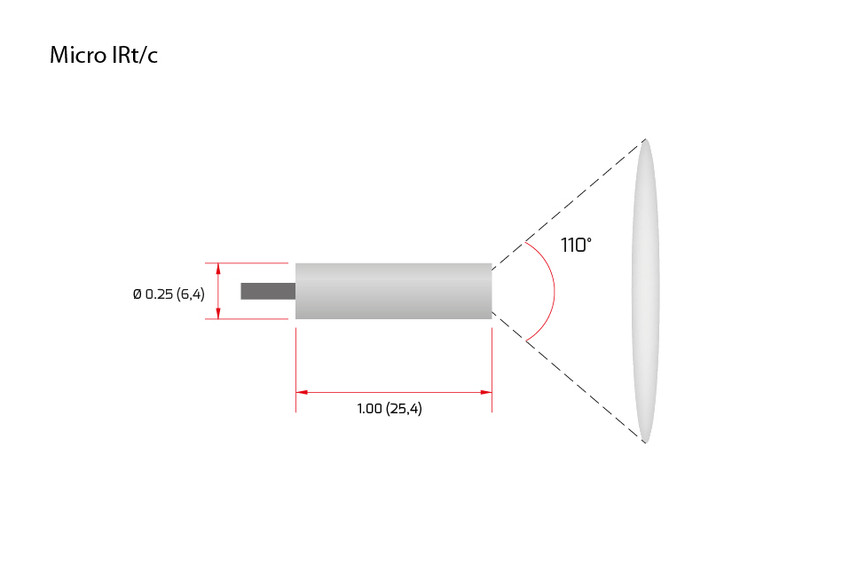

• Dimensions: 0.25” (6.3 mm) Dia. x 1.0” (25.4 mm)
• Weight: Approximately 30 grams (1 oz.)
• Input Device Compatibility: It is recommended to use input devices with less than 1 nA of leakage current to minimize offsets, and sensor break detection should be set to 40 kohm maximum.
• Housing: Stainless steel, hermetically sealed, exceeds NEMA 4X, IP67
