The world’s only self powered infrared thermocouple. Pre-calibrated IRt/c's are best for low temperatures (< 500 °F) and non-metal or coated metal surfaces.
No active electronics, so these passive devices can not fail.
Mean Time Between Failure reports have been documented with a rate of >1,000 years between failures. The patented technology separates the IRt/c from all other non -contact temperature products. Our Exergen sensors will minimize downtime and increase your production.
The IRt/c family of pre-calibrated IRt/c's includes:
- Series (Short ID# begin with)
- IRt/c.01 (1141)
- IRt/c.03 (1142)
- IRt/c.07 (138)
- IRt/c.10 (115)
- IRt/c.1X (110/111)
- IRt/c.2 (117/118/119)
- IRt/c.3SV (130)
- IRt/c.3x (1185/1194)
- IRt/c.5 (120/121/122)
- IRt/c.SV (112/113/114)
- IRt/c- (109/110/111)

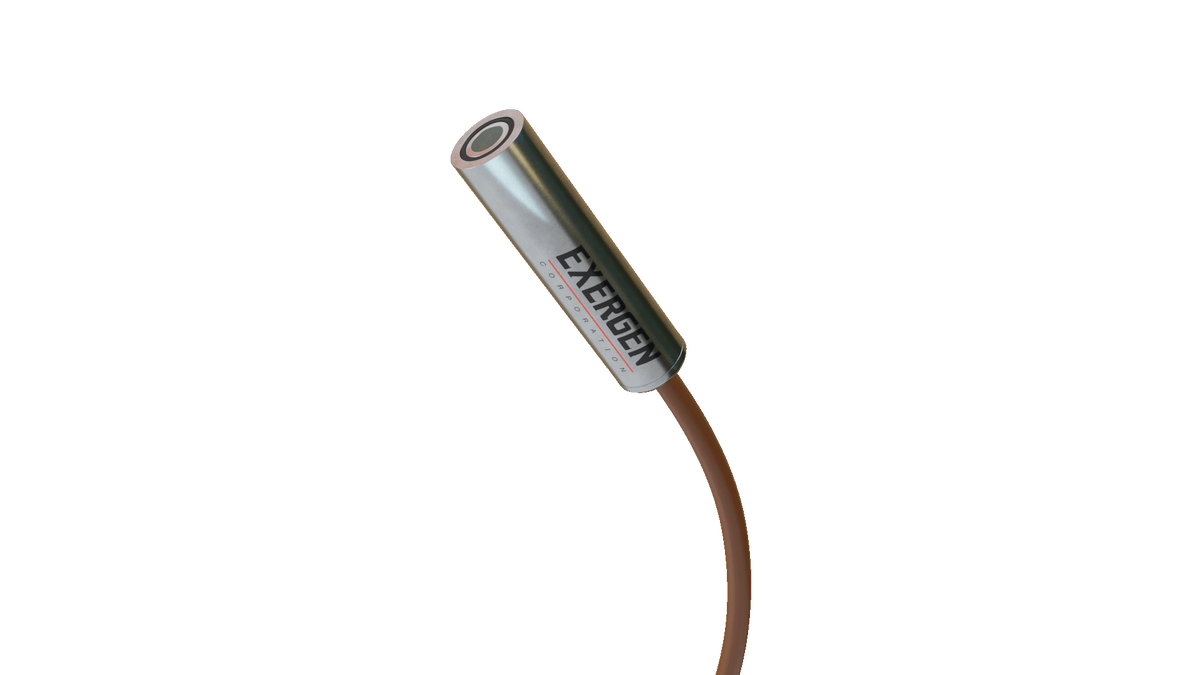

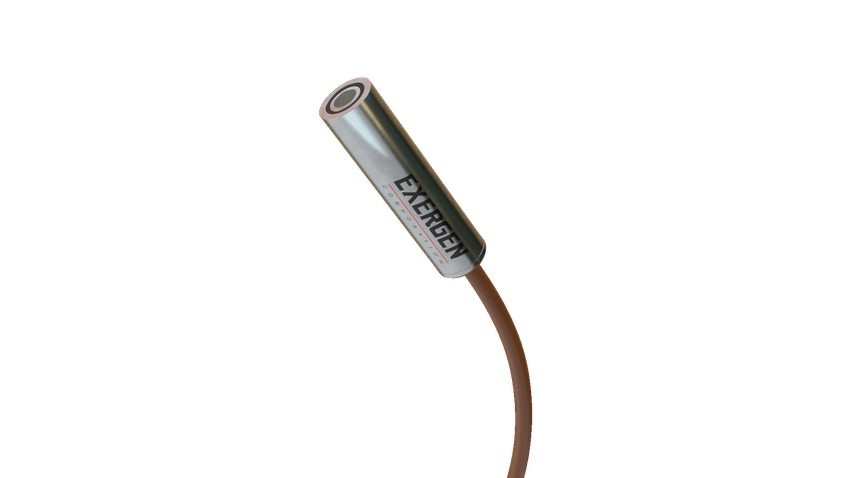

- microIRt/c (uIRt/c #'s - 150)
Learn even more about Exergen Sensors here!
Features Include:
- Ambient Temperature Range: -4 to 212°F (-20 to 100 °C)
- Sensing Range: -45 to 1157°F (-49 to 625 °C) with linearization at readout
- Field-of-View: approximately 4:1 (14°)
- Minimum Spot Size: 3 mm (.1”)
- Spectral Response: 5.5 to 20 µm
- Output: K type thermocouple
- Cable: 3 feet of unshielded, duplex insulated, type K, 24 AWG, PFA jacket rated to 500 o F (260 o C) (Shielded cable available upon request)
- Impedance: 15 – 40 Kohms, varies depending on temperature range
- Resolution: Approximately 0.0003°C (Johnson Noise limited)
- Response Time: 50 millisecond time constant (typical)
- Accuracy (Interchangeability): 1% to factory calibration conditions

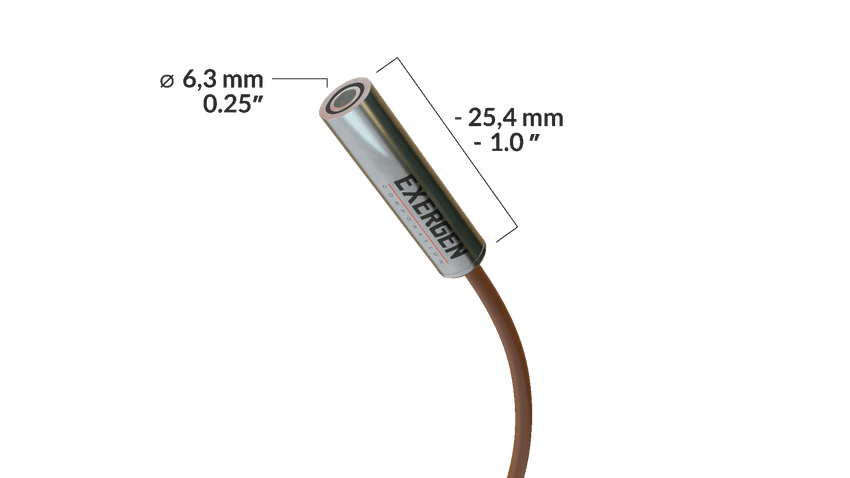

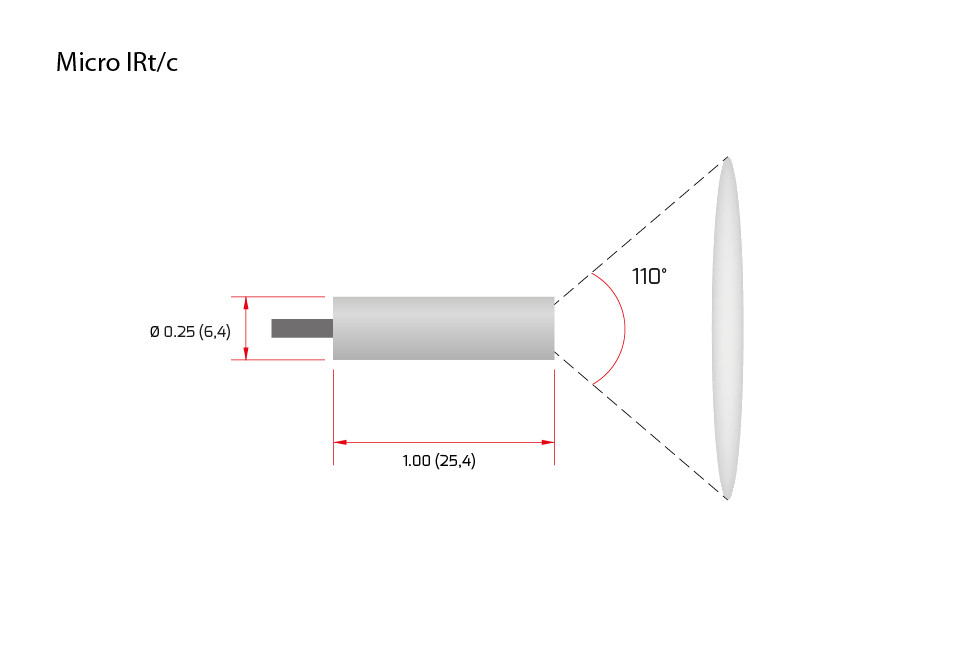

- Dimensions: 0.25” (6.3 mm) Dia. x 1.0” (25.4 mm)
- Weight: Approximately 30 grams (1 oz.)
- Input Device Compatibility: It is recommended to use input devices with less than 1 nA of leakage current to minimize offsets, and sensor break detection should be set to 40 kohm maximum.
- Housing: Stainless steel, hermetically sealed, exceeds NEMA 4X, IP67
