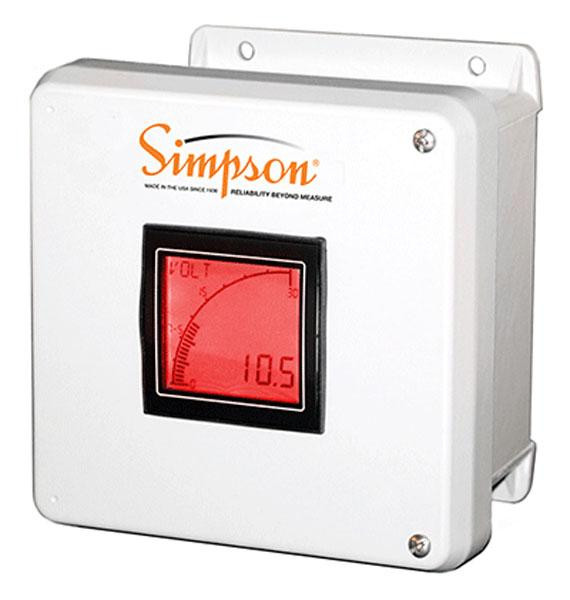

Simpson Electric's Eagle series is the world's smartest meter!
Simpson's Eagle is a programmable meter with a reinforced, fiberglass enclosure. It is ideal for outdoor use in industries such as farming, rock quarries, electricians, solar and many others.
Features of the Eagle series include:
User figurable to measure AC/DC voltage, AC current or frequency
Easily programmable by connecting to computer via USB
Main power 100-240VAC
User-programmable bar graph and alarms to alert operators when a parameter is out of range
User configurable backlight colors of red, green and white
4 character messaging area displays custom messages, alarms and annunciators
Interface to other equipment using control relays included
Available with or without control relays
Field configurable for 120VAC output for alarm to sound or light
Also available in rate and process meter
Enclosure is NEMA rated type 3, 3R, 3S, 4, 4X, 12 and 13, IP68
CE, RoHS, UL
Free software download
Leadtime only a week for enclosure with single meter, generally two weeks for more
Please note that the light tower shown in accessories is an Altech light tower which we are also an authorized distributor for. You will see the Simpson and Altech options under accessories.
Simpson's Eagle was derived from the Native American Ojibwe word Miigiizi. For many Native Americans, the bald eagle is a powerful spirit animal. They symbolize power, bravery and also balance.
Features Include:
Input Power: 100-240VAC
Configuration: PC Application via USB

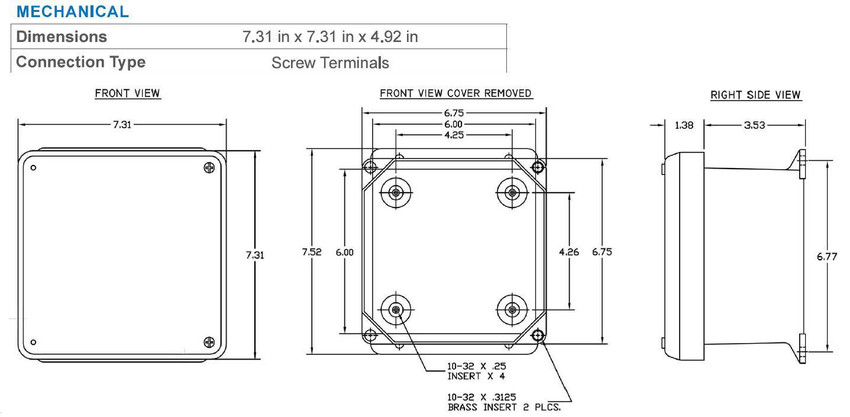

Dimensions (HxLxW): 7.31in x 7.31in x 4.92 in
Wire Gauge: 0.8mm² - 3.3mm² (18AWG to 12AWG)
Weight: 4 lbs
User configurable to measure AC/DC voltage, AC current or frequency
User-programmable bar graph and alarms to alert operators when a parameter is out of range
User configurable backlight colors of red, green and white
4 character messaging area displays custom messages, alarms and annunciators
Interface to other equipment using control relays included
Available with or without control relays
Field configurable for 120VAC output for alarm to sound or light
Also available in rate and process meter
Enclosure: NEMA rated type 3, 3R, 3S, 4, 4X, 12 and 13, IP68
