MX4W-A-F1

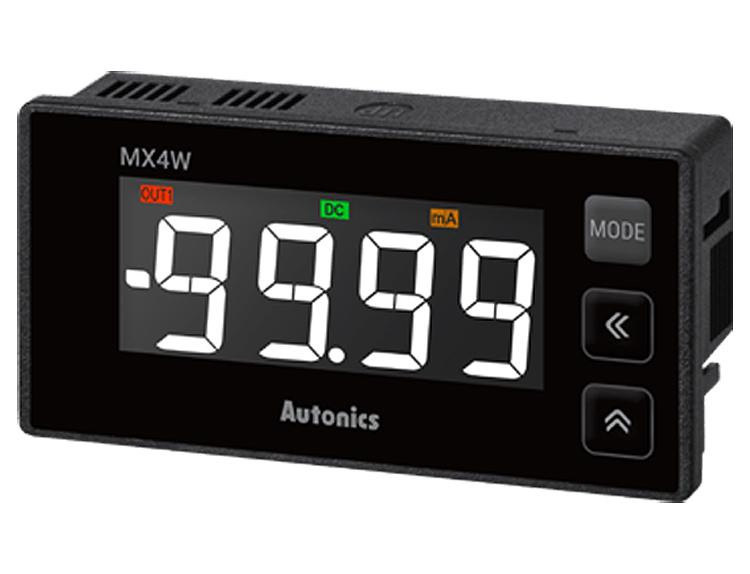

Autonics MX4W series is an LCD display digital panel meter.

The large, easy to read white PV characters (19mm!) are easy to read at any angle and 12-segment displays are useful for displaying various alphanumeric characters.

The input and output terminals are isolated which allows multiple units to be powered by the same power supply. This series also has either DC/AC voltage or DC/AC current input options (by model) for a range of applications.

The compact 20mm rear-length gives you many options for installation in limited spaces.

Additional features:

• Preset output: OUT1, OUT2 (NPN/PNP open collector output)
• Power factor display/output function
• Power supply: 24-240VAC, 59/60HZ, 24-240VDC universal
• 12-segment display

Marshall Wolf Automation is your authorized Autonics distributor!

Series Features Include:

• LCD display with easy-to-read white PV characters
• Isolated input and power modules allow powering of multiple units using a single power supply
• Compact, space-saving design (rear-length: 20 mm): reduced rear-length size by 80% compared to same DIN size panel meters (MT4W)
• Various input options (by model) - Input options: DC/AC voltage, DC/AC current
• Maximum allowed input: 500 VDC, 500 VAC, DC 5 A, AC 5 A
• Display range: -9999 to 9999
• High/low-limit display scale function
• AC frequency measurement (range: 0.100 to 1200 Hz)
• Preset output: OUT1, OUT2 (NPN/PNP open collector output)
• Power factor display/output function: displays analog outputs (1-5 V, 4-20 mA) from power factor converters as -0.50~1.00~0.50
• Various functions: peak display value monitoring, display cycle delay, zero-point adjustment, peak display value correction, etc.
• Power supply: 24-240 VAC 50/60 Hz, 24-240 VDC universal

Technical Information:

• Autonics MX4W Series Panel Meter Datasheet
• Autonics MX4W Series Panel Meter Instruction Manual
• Autonics MX4W Series Panel Meter Technical Description
