MDI Mercury Relays
260NO-24D-18

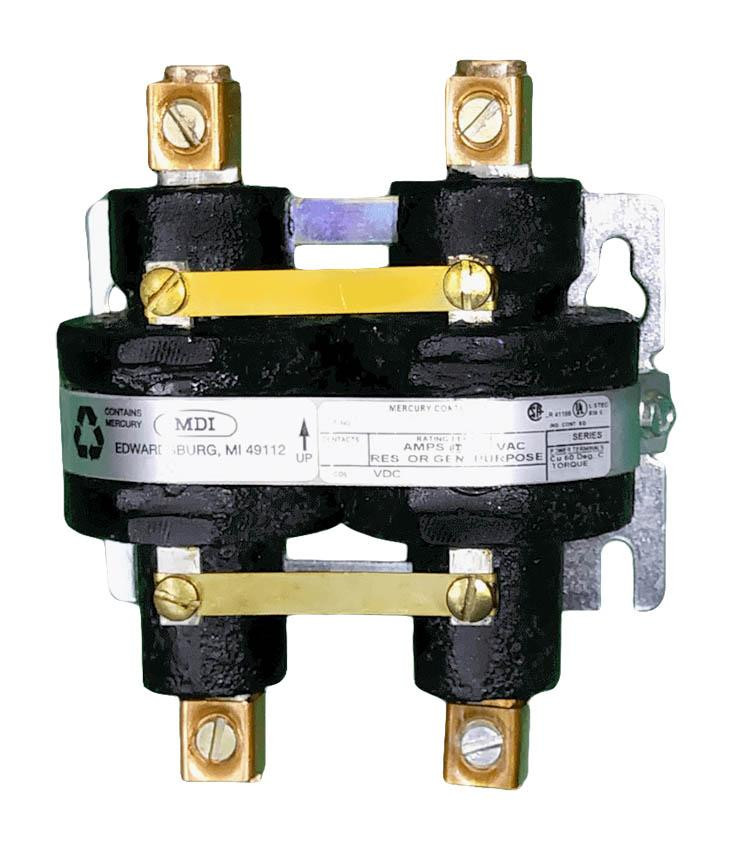

Mercury Relay, 2 Pole, 60 Amp (60A), NO, 24VDC, Steel Strap Around Poles
$120.78
260NO-120ANB
$146.88
Mercury Relay, 2 Poles, 60 Amp, NO, 120VAC Coil, 50/60Hz, Narrow "NB" Bracket/Backplate
- Weight:
- 1.60 LBS
- Minimum Purchase:
- 1 unit
Description
MDI manufacturers mercury relays and also offers a complete line of level controls, SSRs and switches.
Their contactors are rated from 30 to 100 amps and are encased in hermetically sealed stainless steel tubes to provide reliable switching for millions of operations.
MDI was founded in 1975, remains family owned and is manufactured right in Michigan.
Features Include:
- Contact Resistance: .002 ohms
- Dielectric Withstand: 2,500 VAC RMS
- Resistive Coil: 120V 50/60 Hz
- Resistance: 625 Ω
- Current: 96 mA
- VA: 11.6
- Wattage: 5.8
- Two Pole / Single Throw
- Narrow "NB" Bracket/Backplate
- Magnetically Activated
- Mercury Contactor
Ratings:
- Contacts: 48 AMP @ 600 VAC
- 60 AMP @ 480 VAC
Technical Information:
