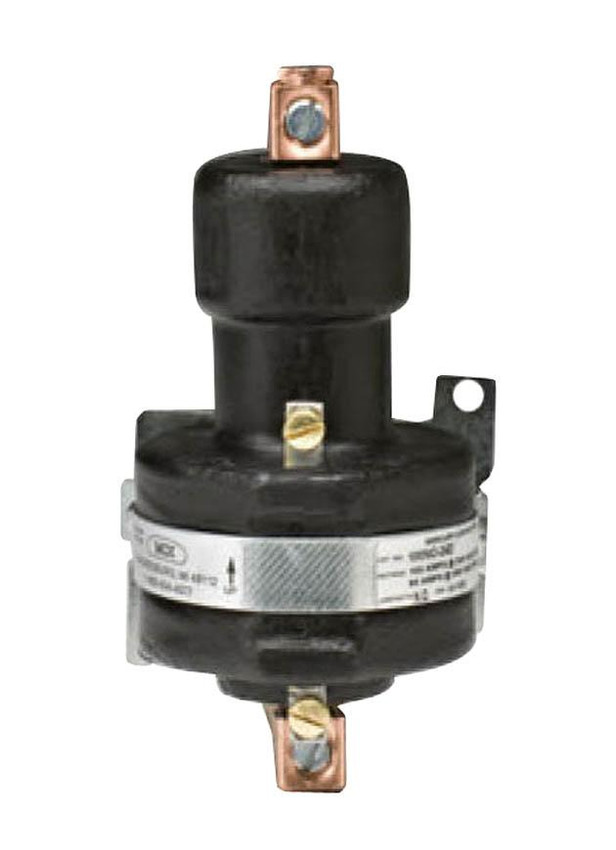

MDI Mercury Relays
100NO-24DH
Mercury Relay, 1 Pole, 100 Amp (100A), Normally Open, Inductive/Resistive Loads, Coil Voltage: 24Volts DC, Nylon straps around pole.
$131.80
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
100NO-24DH-6A
$155.70
Mercury Relay, 1 Pole, 100 Amp (100A), NO, 24VDC, High Voltage, SPST, Nylon Strap Around Poles
- Weight:
- 2.00 LBS
- Minimum Purchase:
- 1 unit
Description
MDI manufacturers mercury relays and also offers a complete line of level controls, SSRs and switches.
Their contactors are rated from 30 to 100 amps and are encased in hermetically sealed stainless steel tubes to provide reliable switching for millions of operations.
MDI was founded in 1975, remains family owned and is manufactured right in Michigan.
Specifications
Amp Rating
100 Amp
Normally Open/Closed
Normally Open (NO)
Poles
1 Pole
Options
No Special Options
All - Voltage
24VDC
Warranty
1 Year
Weight
2
Features Include:
- Coil Data: 65 Ω, 370 mA, 8.9 VA, 8.9 Watts
- Coil: 24 V.D.C.
- Contacts: 10 AMP @ 3500 VAC General Purpose, 15 AMP @ 2500 VAC General Purpose
- Contact Resistance: .001 ohm, After Cycling Under Load
- Torque Specifications: Coil Screws: 7 in-lb, Terminal Screws: 45 in-lb
- Coil Terminals: #6 Binding Head Screws
- Load Terminals: 2-8 AWG Compression Type
- Operate Time: 50 milliseconds
- Release Time: 80 milliseconds
- Dielectric Withstand: 8000 VAC RMS
- Longevity: Millions of Cycles
- Temperature Range: -35°C to 85°C
- AC Inductive (General Purpose P.F. 0.7 or Greater): 3500 VAC @ 10 AMPS, 2500 VAC @ 15 AMPS
- Weight: 1.25 lb
- Stock Quantity: Made to Order
