A051B2DAR0-38R
$5,162.80

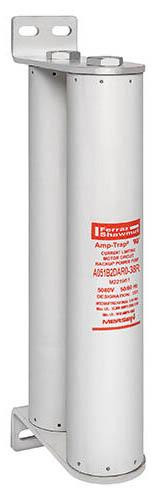

Medium Voltage Fuse, 5080VAC, 50/60Hz, 38R Amp, 65kA IR, R-Rated, Bolt-On Mount, Visual Indicator, 7.63 x 3.00 x 19.25" HWL, Amp-Trap Bolt-In Series for Short CIrcuit Protection of Medium Voltage Motors and Motor Controllers
- Weight:
- 25.00 LBS
- Minimum Purchase:
- 1 unit
Configure Your Optimal AC Drive Solution
Build a complete solution with expert guidance on AC drives and compatible components including motors, circuit breakers and protection equipment
Description
Mersen is a global manufacturer of low voltage fuses, fusegear and power distribution blocks.
You might recognize the names Gould Shawmut or Ferraz Shawmut... Gould Shawmut was acquired in 1999 and became Ferraz Shawmut. By 2010 Ferraz Shawmut changed their official corporate name to Mersen.
Specifications
Amp Rating
38 Amp
Poles
See Spec or N/A
Options
No Special Options
Warranty
1 Year
Weight
25
Series
See Specs
Length/Depth
19.38
Height
3.12
Width
7.75
Type of Product
Fuses
Fuse Class
Class R
- Medium voltage fuse
- 5080VAC
- 38R amp
- R-rated
- Bolt-on mount
- Short circuit protection of medium voltage motors and motor controllers
