GSB631PC10
Alt: Minimum Order 1 is Limited to Available Stock Only! Then the Minimum will be 20 Pieces.
$10.64

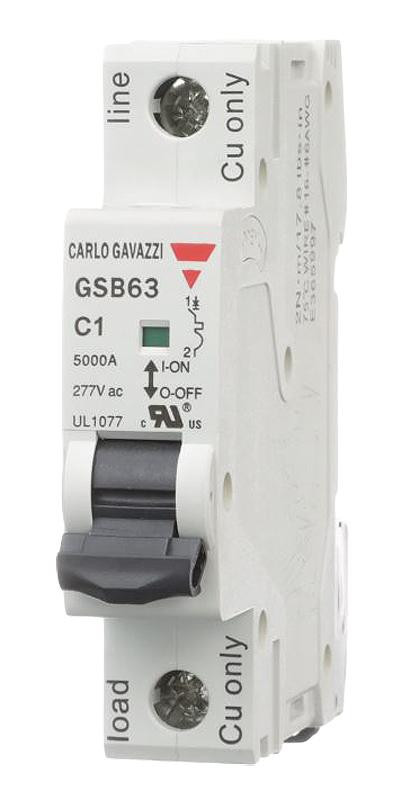

Supplementary Circuit Protector, UL1077, 1 Pole, C-Curve, 10A Overload Range, 277VAC, 5kA, DIN Rail Mount, IP20, GSB63 Series
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Series Features Include:
- Protection of circuits against short circuit and overload currents
- UL1077 supplementary protection
- 1, 2, 3 and 4 pole arrangements
- 13 amperage sizes up to 63Amps
- Insulation Voltage: 500 VAC
- Rated Voltage: Single Phase: 277 VAC / Three-Phase: 480Y/277VAC
- Rated Frequency: 50/60 Hz
- Rated Breaking Capacity: 5,000 A
- Mounting: Vertical on DIN rail EN 60715 (35mm)
- Connection: Line-in on top, line-out on bottom
- Icn of 5kA
- Bimetallic element for small overloads
- Magnetic element for short circuit protection
- B, C, D trip characteristics
- Full line of bus bars and connectors
- Auxiliary contact, alarm switch and shunt release accessories
Technical Information:
