0707101700
Alt: 707101700, MMS-100H 63A METASOL EXP

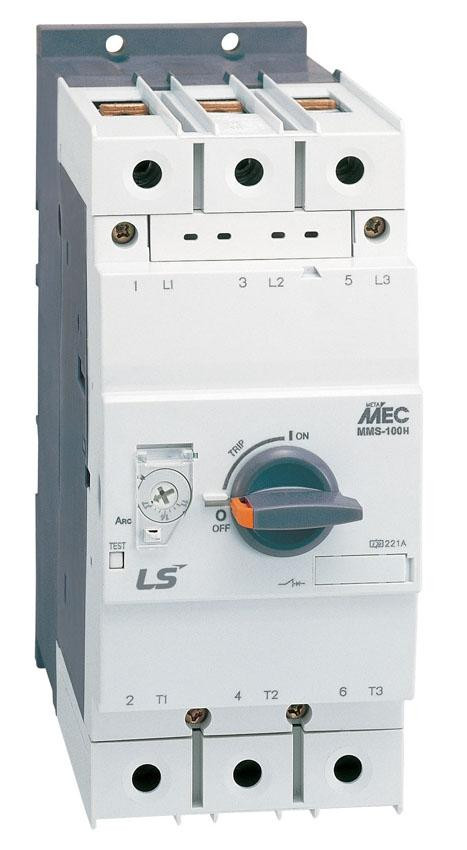

Manual Motor Starter, 63A, (45-63A), 100F, High Breaking Capacity, Overload & Instantaneous Protection, This is the Latest Version of (0707001700, 707001700, MMS-100H 63A EXP)
- Weight:
- 4.86 LBS
- Minimum Purchase:
- 1 unit
LS Meta-MEC manual motor starters (MMS- Series) are available from 32 to 100 amp and offer a complete range of accessories. We have common accessories available under the 'Accessories' tab, however, you can find the full selection in the brochure under the 'Documents' tab.

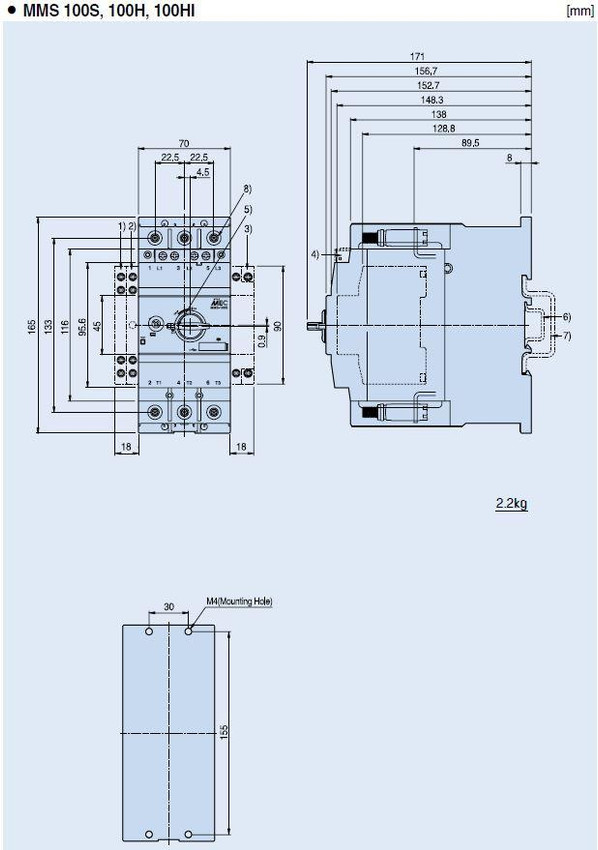

They have a 45mm width up to 32 amp, 55mm width up to 63 amp and 70mm width up to 100 amps.
There is a 3 position operator - ON-OFF- TRIP (only 100 amp is applied) and a handle lock in the OFF position.
Marshall Wolf Automation is your authorized LS distributor!
Features Include:
- Dial cover for current setting, cover lock device, large scale letter
- Identification label
- Handle lock function in OFF position & Three position handle
- Trip test device
- Insulation barrier
- 35mm/75mm din-rail standard mounting & screw mounting
- Finger safe terminal cover
- Direct adapter (Connection kit with mini Magnetic Contactor)
- Rated operating voltage (Ue): 690V for MMS-32
- Rated frequency (Hz): 50/60Hz
- Rated insulation voltage (Uimp): 6kV for MMS-32
- Utilization category: Cat A., AC3
- Instantaneous short circuit: 13 x Ie max
- Wide operation temperature: -20 ~ +60°
