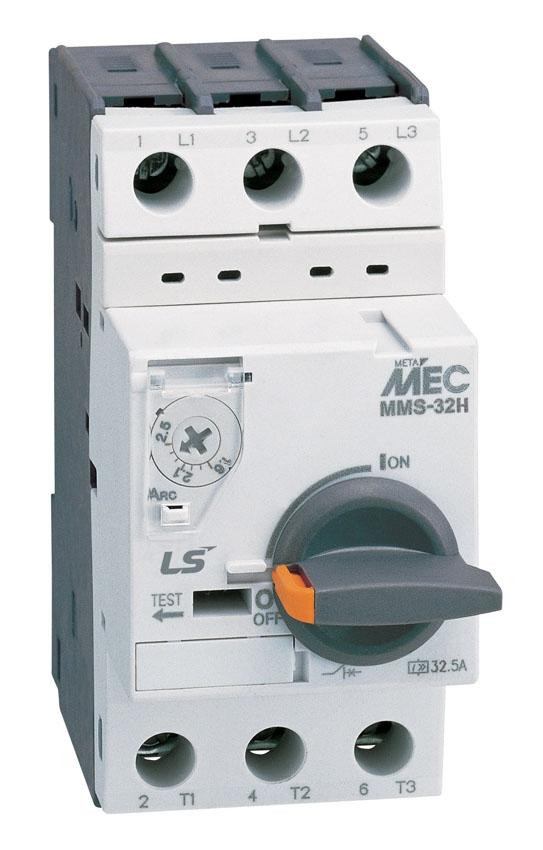

Manual Motor Starter, 4A, 32F, High Breaking Capacity, Instantaneous Protection Only, NCNR, This is the Latest Version of (0705002400, 705002400, MMS-32HI 4A EXP)
LS Meta-MEC manual motor starters (MMS- Series) are available from 32 to 100 amp and offer a complete range of accessories. We have common accessories available under the 'Accessories' tab, however, you can find the full selection in the brochure under the 'Documents' tab.
They have a 45mm width up to 32 amp, 55mm width up to 63 amp and 70mm width up to 100 amps.
There is a 3 position operator - ON-OFF- TRIP (only 100 amp is applied) and a handle lock in the OFF position.
Marshall Wolf Automation is your authorized LS distributor!
Features Include:
Dial cover for current setting, cover lock device, large scale letter
Identification label
Handle lock function in OFF position & Three position handle
Trip test device
Insulation barrier
35mm/75mm din-rail standard mounting & screw mounting
Finger safe terminal cover
Direct adapter (Connection kit with mini Magnetic Contactor)
Rated operating voltage (Ue): 690V for MMS-32
Rated frequency (Hz): 50/60Hz
Rated insulation voltage (Uimp): 6kV for MMS-32
Utilization category: Cat A., AC3
Instantaneous short circuit: 13 x Ie max
Wide operation temperature: -20 ~ +60°
Need more information? Find product documentation below:
