Weg
MPW18-3-D004
Manual Motor Protector, 18A, 0.25-0.4A Overload Setting Range, 3-Pole, 690V, 50/60Hz, On/Off Pushbutton, Screw Terminal, IP20
$37.83
MPW18-3-D016
Alt: 12429368
$40.95
Manual Motor Protector, 18A, 1-1.6A Overload Setting Range, 3-Pole, 690V, 50/60Hz, On/Off Pushbutton, Screw Terminal, IP20
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
WEG's MPW series are compact motor protective circuit breakers.
These manual motor protectors (MMP) are ideal for harsh operating environments and were developed to meet IEC 60947 and UL508 standards.

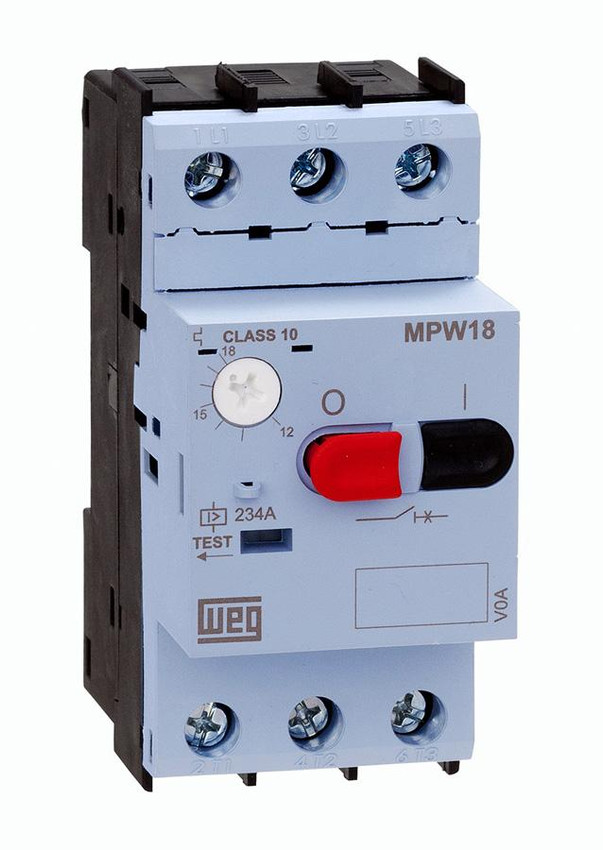

MPW18 Series
- Motor protective circuit breaker up to 18 A
- Thermal-magnetic circuit breaker (provides protection against short-circuit and overload) or only magnetic circuit breaker (provides protection against short-circuit)
- Same technical features (mechanical and electrical) of former MPW16 (up to 16A)
- Pushbutton operated
MPW40 Series
- Motor protective circuit breaker up to 40 A - 45 mm wide
- Thermal-magnetic circuit breaker (provides protection against short-circuit and overload) or only magnetic circuit breaker (provides protection against short-circuit)
- Same technical features (mechanical and electrical) of former MPW25 (up to 32 A)
- Rotary handle operated
MPW80 Series
- Motor protective circuit breaker up to 80 amp
- IP20
- Rotary handle operated
- Will replace the MPW65 series in 2021
MPW100 Series
- Motor protective circuit breaker up to 100 amp
- Rotary handle operated
Accessories for MPW18/MPW40 - please documents for MPW80 and MPW100 accessories:
- ACBF-11-18- front auxiliary contact block
- ACBS-11-B - 1NO/1NC left side auxiliary contact block
- ACBS-20-B - 2NO left side auxiliary contact block
- ACBS-02-B - 2NC left side auxiliary contact block
- TSB-22-B - trip signalling block
- Please see spec sheet under 'Docs' for additional accessories
Marshall Wolf Automation is your stocking authorized WEG distributor.
Series Features Include:
- Short circuit interrupting capacity up to 50kA@480Vac (10kA@600Vac)
- Phase Loss sensitivity protection
- UL Type-E self-protected combination starter
- Suitable for manual motor controller and group installation
- Group motor installations (per NEC Article 430)
- Wide variety of Accessories
- Rated for DC applications
- Fixed short circuit release 13 x lu
- Built-in protection: disconnect means, short circuit protection, motor control and overload protection
- Ambient temperature compensation -40 - +1400F (-20 - +600C)
Need More Information?
- WEG MPW Series Manual Motor Protectors Flyer
- WEG MPW Series Manual Motor Protectors Datasheet
- WEG MPW18 & MPW40 Series Manual Motor Protectors Catalog
- WEG MPW18/MPW18i Series Manual Motor Protectors Installation Instructions
- WEG MPW Series Accessories Installation Instructions
- Weg Power and Control Products 2020 Catalog
Learn more about Circuit Breakers Here!
