MPW100-3-U100
Alt: 10047295
$280.80
Manual Motor Protector, 100A, 80-100A Overload Setting Range, 3-Pole, 690V, 50/60Hz, Terminal Box, IP20
- Weight:
- 5.68 LBS
- Minimum Purchase:
- 1 unit
Description
WEG's MPW series are compact motor protective circuit breakers.
These manual motor protectors (MMP) are ideal for harsh operating environments and were developed to meet IEC 60947 and UL508 standards.
MPW18 Series
- Motor protective circuit breaker up to 18 A
- Thermal-magnetic circuit breaker (provides protection against short-circuit and overload) or only magnetic circuit breaker (provides protection against short-circuit)
- Same technical features (mechanical and electrical) of former MPW16 (up to 16A)
- Pushbutton operated
MPW40 Series
- Motor protective circuit breaker up to 40 A - 45 mm wide
- Thermal-magnetic circuit breaker (provides protection against short-circuit and overload) or only magnetic circuit breaker (provides protection against short-circuit)
- Same technical features (mechanical and electrical) of former MPW25 (up to 32 A)
- Rotary handle operated
MPW80 Series
- Motor protective circuit breaker up to 80 amp
- IP20
- Rotary handle operated
- Will replace the MPW65 series in 2021
MPW100 Series
- Motor protective circuit breaker up to 100 amp
- Rotary handle operated
Accessories for MPW18/MPW40 - please documents for MPW80 and MPW100 accessories:
- ACBF-11-18- front auxiliary contact block
- ACBS-11-B - 1NO/1NC left side auxiliary contact block
- ACBS-20-B - 2NO left side auxiliary contact block
- ACBS-02-B - 2NC left side auxiliary contact block
- TSB-22-B - trip signalling block
- Please see spec sheet under 'Docs' for additional accessories
Marshall Wolf Automation is your stocking authorized WEG distributor.
Features Include:
- Phase Loss sensitivity protection
- UL Type-E self-protected combination starter
- Suitable for Motor Disconnect applications
- Group motor installations (per NEC Article 430)
- Rated for DC applications
- Maximum rated current Ie: 100 A
- Setting range for thermal release: 80-100 A
- Short-circuit release: 13 x Iemax
- Rated impulse withstand voltage Uimp: 8 kV
- Tripping class: 10
- Dimensions (H x W x D): 165 mm/6.5 in x 70 mm/2.76 in x 171 mm/6.73 in
Technical Information:
- WEG MPW100-3-U100 Datasheet
- WEG MPW Series - Manual Motor Protectors Flyer
- WEG MPW Series - Manual Motor Protectors Catalog
- WEG MPW100 Manual Motor Protector Installation Guide
- Weg Power and Control Products 2020 Catalog
Options Technical Information:
Learn more about Circuit Breakers Here!
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg

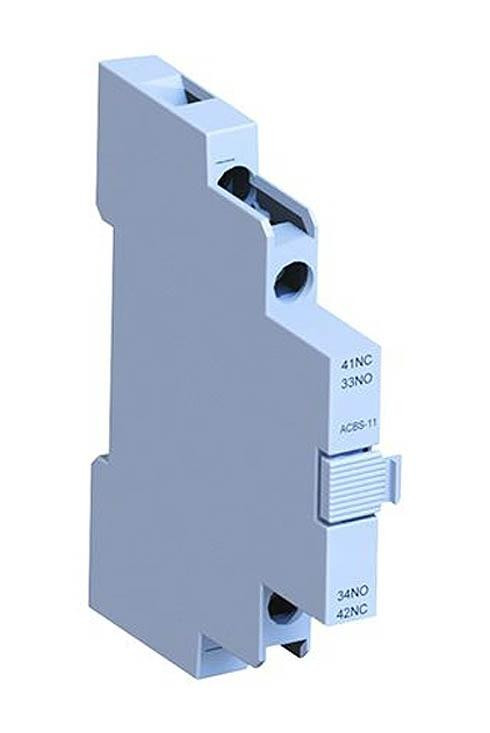

ACBS-11 MPW100
