Weg
ACBS-02 MPW100
Auxiliary Contact Block, 2NC, Left Side Assembly, 240VAC Ue, Screw Terminal, Gray, Use with MPW100 Motor Protector
$10.53
MPW100-3-U075
Alt: 10076551
$259.35
Manual Motor Protector, 100A, 55-75A Overload Setting Range, 3-Pole, 690V, 50/60Hz, Terminal Box, IP20
- Weight:
- 5.68 LBS
- Minimum Purchase:
- 1 unit
Description
WEG's MPW series are compact motor protective circuit breakers.
These manual motor protectors (MMP) are ideal for harsh operating environments and were developed to meet IEC 60947 and UL508 standards.
MPW18 Series
- Motor protective circuit breaker up to 18 A
- Thermal-magnetic circuit breaker (provides protection against short-circuit and overload) or only magnetic circuit breaker (provides protection against short-circuit)
- Same technical features (mechanical and electrical) of former MPW16 (up to 16A)
- Pushbutton operated
MPW40 Series
- Motor protective circuit breaker up to 40 A - 45 mm wide
- Thermal-magnetic circuit breaker (provides protection against short-circuit and overload) or only magnetic circuit breaker (provides protection against short-circuit)
- Same technical features (mechanical and electrical) of former MPW25 (up to 32 A)
- Rotary handle operated
MPW80 Series
- Motor protective circuit breaker up to 80 amp
- IP20
- Rotary handle operated
- Will replace the MPW65 series in 2021
MPW100 Series
- Motor protective circuit breaker up to 100 amp
- Rotary handle operated
Accessories for MPW18/MPW40 - please documents for MPW80 and MPW100 accessories:
- ACBF-11-18- front auxiliary contact block
- ACBS-11-B - 1NO/1NC left side auxiliary contact block
- ACBS-20-B - 2NO left side auxiliary contact block
- ACBS-02-B - 2NC left side auxiliary contact block
- TSB-22-B - trip signalling block
- Please see spec sheet under 'Docs' for additional accessories
Marshall Wolf Automation is your stocking authorized WEG distributor.
Specifications
Alternate Part Number
10076551
Amp Rating
100 Amp
Circuit Breaker Type
Manual Motor Protector (MMP)
Poles
3 Pole
Series
MPW Series
Short Circuit Capacity
See Spec
Trip Curve
MMP - Manual Motor Protector
All - Voltage
690V
Warranty
18 Months
Height
6.5"
Width
2.76"
Weight
5.68
Length/Depth
6.73"
Features Include:
- Phase Loss sensitivity protection
- UL Type-E self-protected combination starter
- Suitable for Motor Disconnect applications
- Group motor installations (per NEC Article 430)
- Rated for DC applications
- Maximum rated current Ie: 100 A
- Setting range for thermal release: 50-75 A
- Short-circuit release: 13 x Iemax
- Rated impulse withstand voltage Uimp: 8 kV
- Tripping class: 10

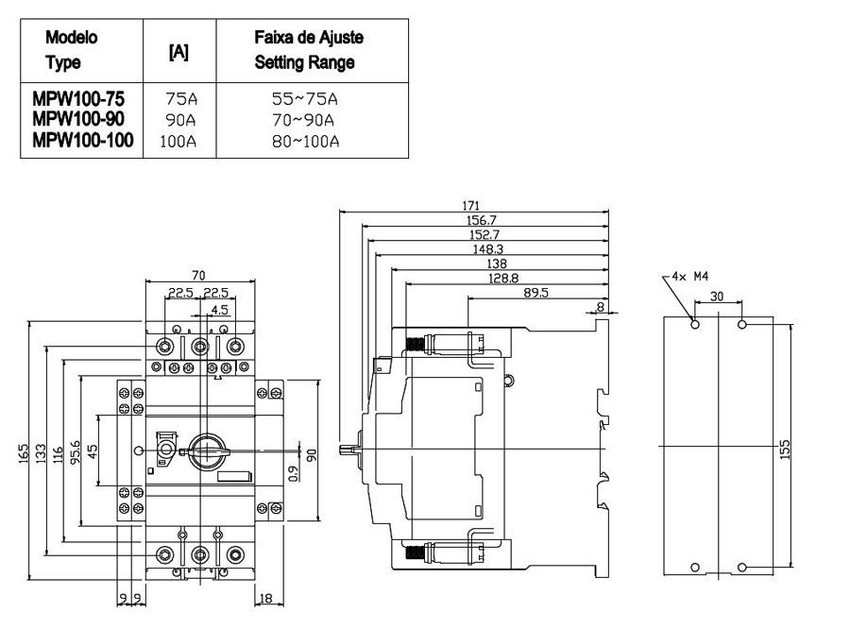

- Dimensions (H x W x D): 165 mm/6.5 in x 70 mm/2.76 in x 171 mm/6.73 in
