Simpson Electric
M235-2-0-73-0

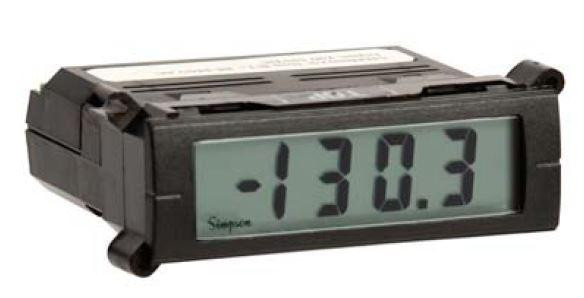

Digital Panel Meter, LED, 85-250VAC, 0-10VDC, 3.5" Digit Red LED, Mini-Max
$324.91
M235-0-0-73-0
Alt: M23500730
$227.88
Digital Panel Meter, Mini-Max, 85-250ACV, 0-10DCV, 3-1/2" Digit LCD,
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Simpson Electric has been manufacturing analog and digital panel meters, as well as test instruments and equipment, since 1927.
They are well known for their 260 volt-ohm-millimeter and remain proudly made in the USA.
Specifications
Alternate Part Number
M23500730
Amp Rating
See Spec
Analog/Digital
Digital
Meter Type
Panel Meter
Series
M135/M235 Series
Warranty
1 Year
Weight
0.5
Series Features Include:
- 3/64 DIN Indicator
- Unique mounting bracket allows stacking of multiple units
- Screw terminal connectors for easy installation
- LCD: 3-1/2 or 4-1/2 digit, 0.5" high LCD display with optional negative image, bright red backlighting
- LED: 3-1/2 digit, 0.56" high display
- LED: 4-1/2 digit, 0.40" high display
- Limited range display scaling
