Alt: 67310013PL, This is the Latest Version of LSLV0450H100-4COND, 6731001300
$3,776.57
(You save)

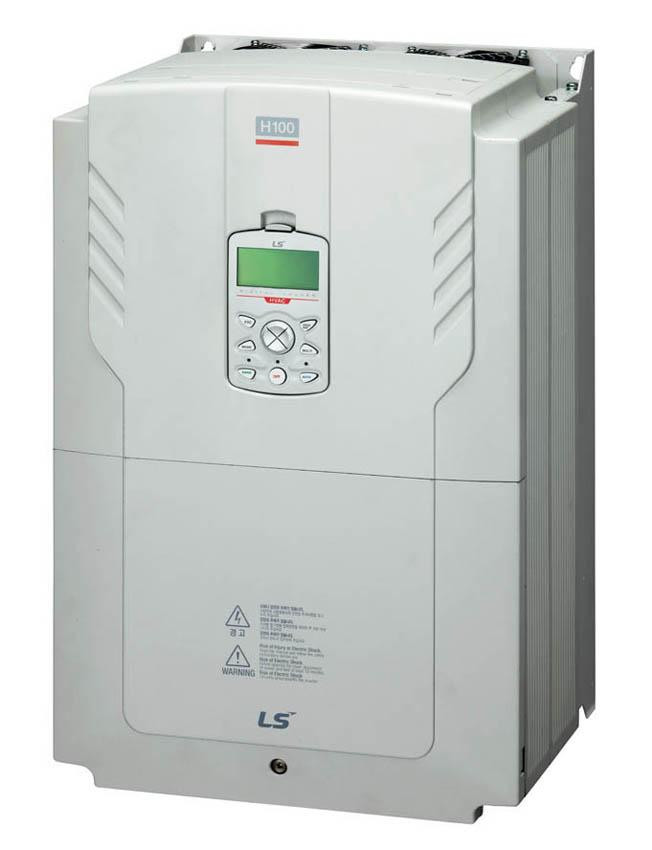

VFD, 60hp, 45kW, 380-480VAC, 3 Phase, 91A, LCD Keypad, UL Open, Built-in DC Reactor, 12.8 x 20.08 x 11.18", H100+ Series, This is the Latest Version of LSLV0450H100-4COND, 6731001300
SKU:
LSLV0450H100-4COND(PLUS)
Weight:
115.80 LBS
Minimum Purchase:
1 unit
Minimal setup and no extra equipment is required to have outstanding pump control with this drive!
The H100+ (Plus) takes the H100 series features and adds new fan and pump control functions! This series is an eco-friendly and energy saving solution for your fan and pump systems.
This series is available in 240V/3 phase from 1hp to 25hp as well as 480V/3 phase from 1hp to 80hp.
The H100+ series has all of the existing features of the H100 series PLUS:
No-flow control
Flow monitoring
PI auxiliary (suction/level/vacuum) control
Over-cycling protection
Differential level detection
Low/high feedback detection
Setpoint timeout
Current limit
Thrust bearing control
Pump minimum speed
Improved Hand-Off-Auto keypad
Power-On run for keypad command
Lead-lag
Enhanced PID performance
Simplify PID group
Various sleep mode and method
Selectable wake-up method (absolute, deviation)
Wake-up disable mode
Backspin timer
Single phase protection - UL tested and approved for use on single phase power
Dual rating - can be used for normal or heavy duty applications
