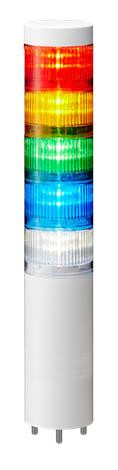

LR6-502WMNW-RYGBC+FB295
Patlite

LR6-502WMNW-RYGBC+FB295

Alt: IP69K LR Series

$260.10

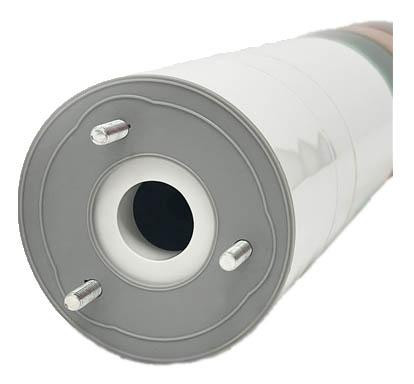

Light Tower, Ø60mm, without Flashing/Buzzer, 5 Tier (Red, Amber, Green, Blue, Clear), 24VDC, Direct Mount with M12 Connector (3 Hexagonal Bolts), Off-White Body, Twist and Lock Design, IP69K, LR6 Series

Weight:
2.25 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

 Our Patlite LR series is available in four diameters; 40, 50, 60 or 70mm.

  • LR4 Series - 40mm, 24VDC or 100-240vAC
  • LR5 Series - 50mm, 12VDC or 24VDC
    • Also available with manual control switch box (HSST-3M2)
  • LR6 Series - 60mm, 24VDC or 100-240VAC
    • Multi-color LED module available, 7 colors in one (LR6-E-MZ)
    • Available with M12 connector, 1/2" NPT or 30mm through-hole mounting option
    • Now available rated IP69K (suffix is FB295)
  • LR7 Series - 70mm, 24VDC only

All LR light towers offer:

  • Ultra-bright LEDs - brilliant, even light
  • IP65 (IEC 60529), NEMA 4X, 13, indoor use
  • Modular twist and lock design, easily customize and field configure LED units and sound modules
  • Completely enclosed optional sound module maintains substantial water and dust protection, 360° sound!
  • Sleek, smooth and rugged housing
  • Four mounting options - direct, pole with L-bracket, pole with circular bracket, pole with folding pracket (off-white only)
  • Available in off-white or silver bodies
  • NPN/PNP transistor output (AC100-240V is NPN only)
  • Operating ambient temperature -20°C to 50°C
  • 2 year warranty
  • The LR series replaced LCE-A, LCS-A, LE, LES, LU5, LME, LMS, LME and LU7 series

Patlite introduces their WD Wireless Data Series!

Modernize your workplace with Patlite's WD wireless data acquisition system - receive real time sttatus alerts straight from the factory floor to any computer!

The system consists of a Patlte light tower + transmitter (see below) which will send information to the receiver (WDR-LE-Z2-PRO):

  • For the LR4 series - use wireless data transmitter WDT-4LR-Z2, will also need receiver WDR-LE-Z2-PRO
  • For the LR5 series - use wireless data transmitter WDT-5LR-Z1, will also need receiver WDR-LE-Z2-PRO
  • Two options for the LR6 series:
    • use WDT-6LR-Z1, will also need receiver WDR-LE-Z2-PRO
    • or use WDT-6LR-Z1-PRO - will also need receiver WDR-LE-Z2-PRO and WDB-D80S-PRO base

Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Patlite

LR6-502WCNW-RYGBC+FB295

Light Tower, Ø60mm, without Flashing/Buzzer, 5 Tier (Red, Amber, Green, Blue, Clear), 24VDC, M12 Connector, Multi-mount: 1/2" NPT Pole Mount Bracket and M30 Nut for Panel Mounting, Off-White Body, Twist and Lock Design, IP69K, LR6 Series

$260.10

Patlite

LR6-502WMBW-RYGBC+FB295

Light Tower, Ø60mm, Flashing/88dB Buzzer, 5 Tier (Red, Amber, Green, Blue, Clear), 24VDC, Direct Mount with M12 Connector (3 Hexagonal Bolts), Off-White Body, Twist and Lock Design, IP69K, LR6 Series

$303.30

Patlite

LR6-502WCBW-RYGBC+FB295

Light Tower, Ø60mm, Flashing/88dB Buzzer, 5 Tier (Red, Amber, Green, Blue, Clear), 24VDC, M12 Connector, Multi-mount: 1/2" NPT Pole Mount Bracket and M30 Nut for Panel Mounting, Off-White Body, Twist and Lock Design, IP69K, Lr6 Series

$303.30

Patlite

LR6-BW+FB295

Light Tower Buzzer Only, Ø60mm, 24VDC, Off-White Body, IP69K, LR6 Series

$42.40

Patlite

LR6-02WCNW+FB295

Light Tower Base Only, Ø60mm, 24VDC, M12 Connector, Multi-mount: 1/2" NPT Pole Mount Bracket and M30 Nut for Panel Mounting, Off-White Body, Twist and Lock Design, IP69K, LR6 Series

$117.00

Patlite

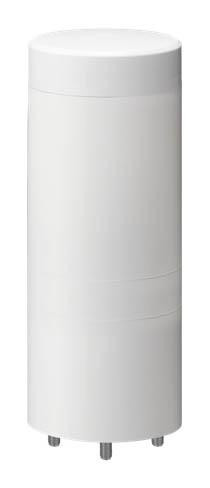

LR6-02WMNW+FB295

Light Tower Base Only, Ø60mm, 24VDC, Direct Mount with M12 Connector (3 Hexagonal Bolts), Off-White Body, Twist and Lock Design, IP69K, LR6 Series

$117.00

Patlite

LR6-302WMNW-RYG+FB295

Light Tower, Ø60mm, without Flashing/Buzzer, 3 Tier (Red, Amber, Green), 24VDC, Direct Mount with M12 Connector (3 Hexagonal Bolts), Off-White Body, Twist and Lock Design, IP69K, LR6 Series

$179.10

Patlite

LR6-302WCBW-RYG+FB295

Light Tower, Ø60mm, Flashing/88dB Buzzer, 3 Tier (Red, Amber, Green), 24VDC, M12 Connector, Multi-mount: 1/2" NPT Pole Mount Bracket and M30 Nut for Panel Mounting, Off-White Body, Twist and Lock Design, IP69K, LR6 Series

$189.65

Patlite

LR6-E-C+FB295

Light Tower LED Module Only, Clear/White, Ø60 x 40mm (WH), 24VDC, Twist and Lock Design, IP69K, LR6 Series

$32.12
