Patlite
LR6-02WCNW

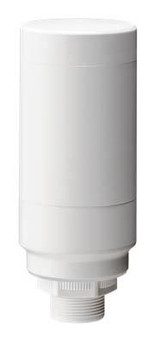

Light Tower Body Unit Only, Ø60mm, 24VDC, M12 8-Pin Quick Disconnect, Multi-Mount: 30mm Panel/M30 External Threads or 1/2" NPT Socket, Off-White, IP65
$110.67
LR6-02WCNW+FB295
Alt: IP69K LR Series
$117.00

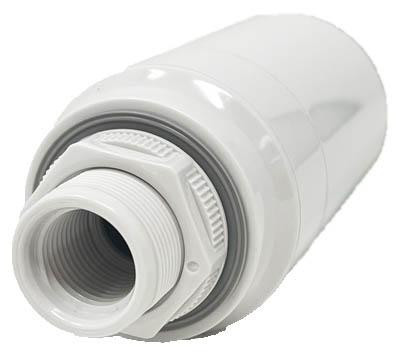

Light Tower Base Only, Ø60mm, 24VDC, M12 Connector, Multi-mount: 1/2" NPT Pole Mount Bracket and M30 Nut for Panel Mounting, Off-White Body, Twist and Lock Design, IP69K, LR6 Series
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Our Patlite LR series is available in four diameters; 40, 50, 60 or 70mm.
- LR4 Series - 40mm, 24VDC or 100-240vAC
- LR5 Series - 50mm, 12VDC or 24VDC
- Also available with manual control switch box (HSST-3M2)
- LR6 Series - 60mm, 24VDC or 100-240VAC
- Multi-color LED module available, 7 colors in one (LR6-E-MZ)
- Available with M12 connector, 1/2" NPT or 30mm through-hole mounting option
- Now available rated IP69K (suffix is FB295)
- LR7 Series - 70mm, 24VDC only
All LR light towers offer:
- Ultra-bright LEDs - brilliant, even light
- IP65 (IEC 60529), NEMA 4X, 13, indoor use
- Modular twist and lock design, easily customize and field configure LED units and sound modules
- Completely enclosed optional sound module maintains substantial water and dust protection, 360° sound!
- Sleek, smooth and rugged housing
- Four mounting options - direct, pole with L-bracket, pole with circular bracket, pole with folding pracket (off-white only)
- Available in off-white or silver bodies
- NPN/PNP transistor output (AC100-240V is NPN only)
- Operating ambient temperature -20°C to 50°C
- 2 year warranty
- The LR series replaced LCE-A, LCS-A, LE, LES, LU5, LME, LMS, LME and LU7 series
Patlite introduces their WD Wireless Data Series!
Modernize your workplace with Patlite's WD wireless data acquisition system - receive real time sttatus alerts straight from the factory floor to any computer!
The system consists of a Patlte light tower + transmitter (see below) which will send information to the receiver (WDR-LE-Z2-PRO):
- For the LR4 series - use wireless data transmitter WDT-4LR-Z2, will also need receiver WDR-LE-Z2-PRO
- For the LR5 series - use wireless data transmitter WDT-5LR-Z1, will also need receiver WDR-LE-Z2-PRO
- Two options for the LR6 series:
- use WDT-6LR-Z1, will also need receiver WDR-LE-Z2-PRO
- or use WDT-6LR-Z1-PRO - will also need receiver WDR-LE-Z2-PRO and WDB-D80S-PRO base
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$50.09
Patlite
LR6-02WCNW+FB291
Light Tower Body Unit Only, Ø60mm, 24VDC, M12 12-Pin Quick Disconnect, Multi-Mount: 30mm Panel/M30 External Threads or 1/2" NPT Socket, Off-White, IP69K
$84.79
Patlite
LR6-02WMNW+FB295
Light Tower Base Only, Ø60mm, 24VDC, Direct Mount with M12 Connector (3 Hexagonal Bolts), Off-White Body, Twist and Lock Design, IP69K, LR6 Series
$117.00
Patlite
LR6-302WMNW-RYG+FB295
Light Tower, Ø60mm, without Flashing/Buzzer, 3 Tier (Red, Amber, Green), 24VDC, Direct Mount with M12 Connector (3 Hexagonal Bolts), Off-White Body, Twist and Lock Design, IP69K, LR6 Series
$179.10
Patlite
LR6-302WCBW-RYG+FB295
Light Tower, Ø60mm, Flashing/88dB Buzzer, 3 Tier (Red, Amber, Green), 24VDC, M12 Connector, Multi-mount: 1/2" NPT Pole Mount Bracket and M30 Nut for Panel Mounting, Off-White Body, Twist and Lock Design, IP69K, LR6 Series
$223.20
Patlite
LR6-E-C+FB295
Light Tower LED Module Only, Clear/White, Ø60 x 40mm (WH), 24VDC, Twist and Lock Design, IP69K, LR6 Series
$39.69
Patlite
LR6-E-G+FB295
Light Tower LED Module Only, Green, Ø60 x 40mm (WH), 24VDC, Twist and Lock Design, IP69K, LR6 Series
$39.69
Patlite
LR6-302WMBW-RYG+FB295
Light Tower, Ø60mm, Flashing/88dB Buzzer, 3 Tier: Red, Amber Green, 24VDC, Direct Mount with M12 Connector (3 Hexagonal Bolts), Off-White Body, Twist and Lock Design, IP69K, LR6 Series
$223.20
