8813020200
Alt: TxIsoLoop-2
$142.00

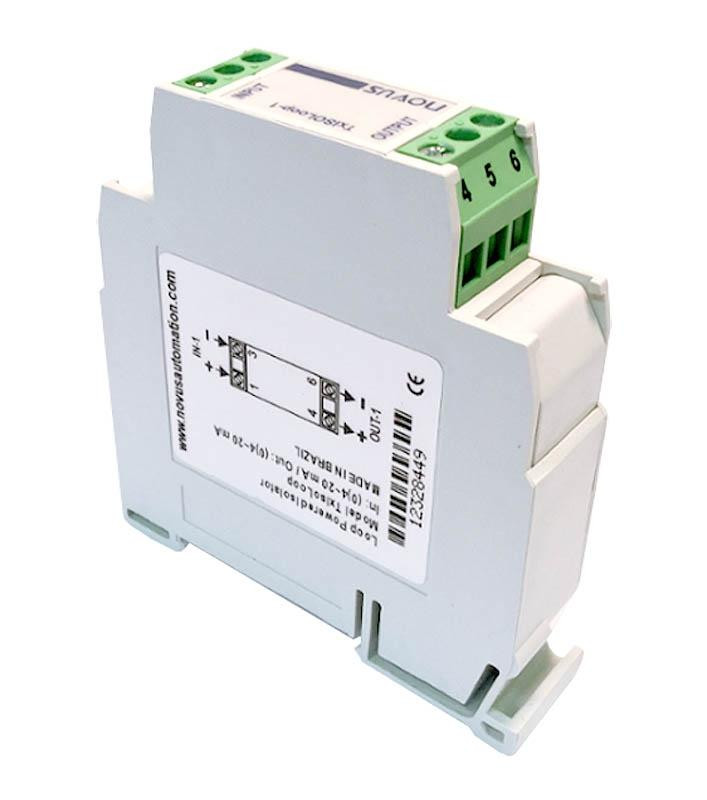

Loop-powered DIN Rail Isolator, In/Out 2-channel, 4-20mA, Temperature & Humidity Transmitters
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Loop isolators provide signal protection by electrically isolating the input signal from the output.
TxIsoLoop-1 and TxIsoLoop-2 simplify your application and avoid the ground loops by providing single and dual loop galvanic isolation.
The 0/4-20 mA input is measured and an identical isolated signal is reproduced at the output. Power is drawn from the 0(4)-20 mA input loop, therefore no auxiliaty power or an external power supply is needed!
Features Include:
- Input Signal (INPUT): 0 to 20 mA; 4 to 20 mA (check minimum current for proper operation)
- Maximum Input voltage (Vin max.): 32 Vdc
- Voltage Drop (Vdrop): < 3 Vdc
- Output Signal (OUTPUT): 0(4) to 20 mA
- Max. Load (RL): 1450 R
- Accuracy: 0.2 % FS @ 0 a 60 °C / RL= 250 R; 0.3 % FS @ -20 a 75 °C / RL= 250 R
- Operating current: > 0.1 mA
- Overload: < 40 mA; < 32 Vdc
- Response time: 2 ms @ RL= 250 R
- Isolation: 3000 Vac / 10 s; 240 Vac continuous
- EMC: EN 61326-1
- Ambient temperature range: -20 to + 75 °C
- Humidity: 20 to 90 % RH
- Protection: IP40
- Wire gauge for connections: 0.14 to 1.5 mm²
- Recommended torque: 0.8 Nm
- Terminal blocks injected in Polyamide
