8813005500
$388.00
LogBox Data Logger, 3 Analog + 1 Digital Input140k Loggings
- Weight:
- 1.50 LBS
- Minimum Purchase:
- 1 unit
Description
Since 1982, NOVUS Automation has manufactured devices for data acquisition, temperature and process control as well as signal conditioning.
NOVUS is headquartered in southern Brazil with sales offices and warehouses in the US as well.
Features Include:
- Display: 3 lines with 4½ digits
- Memory Capability: 140000 records
- Recording Interval: 1 sec to 18 h
- Variable Record: Instantaneous or average
- Acquisition Trigger: Date/Hour, Start button, Digital Input or by Software
- Alarms: 8 Alarms (two per channel) Low and High
- Internal Buzzer: Yes
- Communication Interface: Wi-Fi 802.11 b/g/n, USB
- Configuration Software: NXperience for Windows
- Communication with SCADA or Cloud system: MQTT and Modbus TCP protocol
- Power Supply: 10-30Vcc
- Enclosure Protection Rate: IP40
Backup Battery:
- 4 AA alkaline piles
- Typical autonomy 2 years (turns off Wi-Fi)
Operation Temperature:
- With power supply: -20 to 70 °C / -4 to 158 °F
- With batteries: -10 to 50 °C / 14 to 122 °F
Resolution:
- Analog Inputs: 15 bits
- Counter of pulses: 16 bits

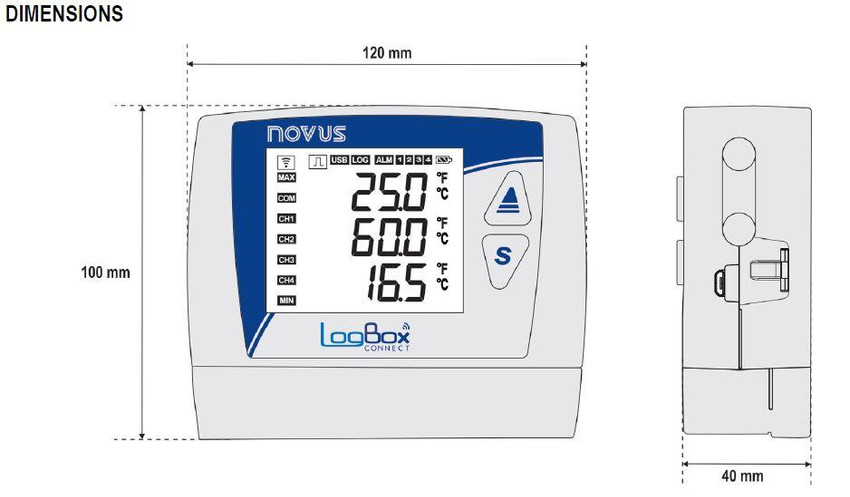

Dimensions:
- 120 x 100 x 40 mm
- 4.72 x 3.94 x 1.57 in
