81500LC410
Alt: N1500-LC
$235.00

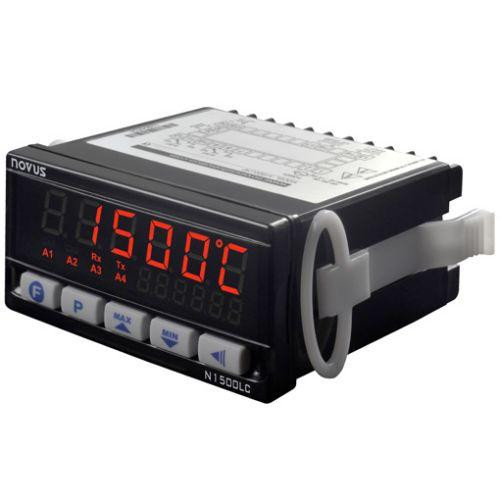

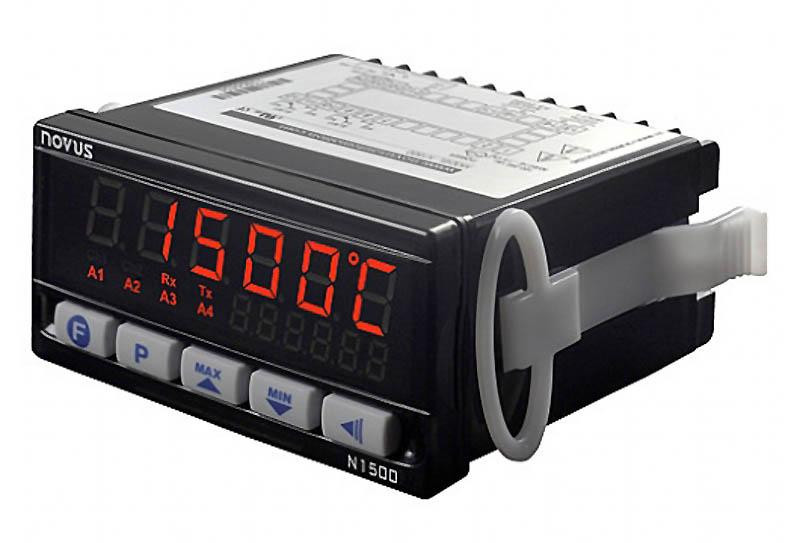

Load Cell Indicator, 2 Relays + 4-20mA, 96x48mm, Indicators
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Load Cell Indicator, 2 Relays+4-20 mA, 96x48 mm INDICATORS
Features Include:
- Accepts: type J, K, T, E, N, R, S and B thermocouples; Pt100, 4-20 mA, 0-50 mV and 0-10 Vdc
- Programmable scaling from -1999 to +9999 and adjustable digital filter
- Accepts and linearizes non-linear 4-20 mA signals from thermocouple transmitters
- Accepts front panel input of custom created non-linear curve with up to 20 segments
- Selectable decimal point for Pt100 , 4-20 mA and 0-50 mV
- Key panel protection through password to avoid tampering
- Alarms: Two 3 A SPST relay alarms in the basic version and two extra relays optional
- Alarm functions: HI, LO, differential HI, diff. LO and sensor break detection
- Hold capability and peak and valley detection
- Tare function via front panel or via digital input
- Five digit 13 mm ultra-bright LED display
- Standard 24 Vdc output for field transmitters
- Universal switching power supply
- Circuitry can be removed from housing without disconnecting wires
- Front panel: IP65, Polycarbonate UL94 V-2
- Back panel: IP30, ABS + PC UL94 V-0
