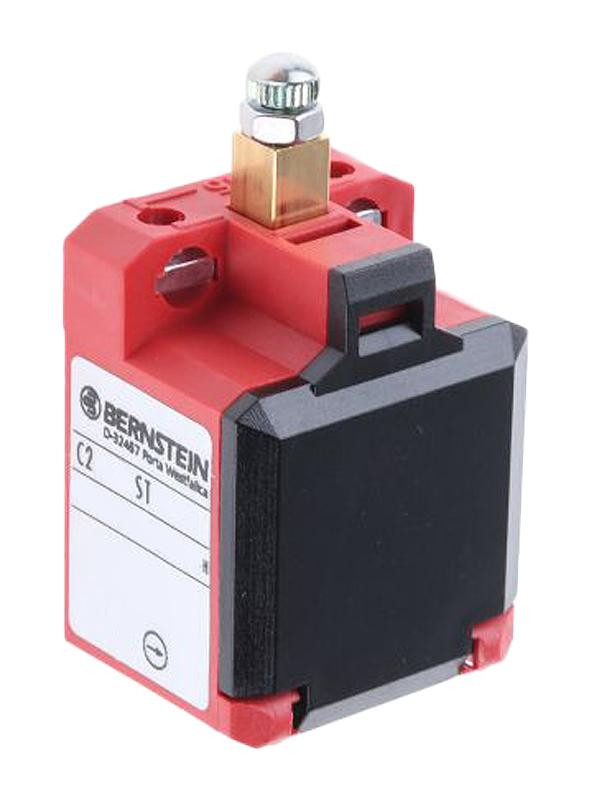

Product image is representative only, please verify specifications.
600.8804.027
Alt: C2-A2Z ST
$39.01
Limit Switch, Slow Action, 2NC, 240V, 10A, Enclosed Plastic Body, IP20
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Bernstein is a German manufacturer of industrial safety and enclosure technology and are well known for a wide range of sensors, switches, enclosures and operating terminals.
If you do not see the part number you are looking for, please Contact Us, we can find what you need!
Features Include:
- Rated Insulation Voltage: 250 VAC
- Conventional Thermal Current: 10 A
- Rated Operational Voltage: 240 V
- Assembly from the top: 2 x M4, from the front 2 x M3
- Connection: 4 screw connections (M3,5)
- Cable entrance: Rectangle 8,5 x 3,5 mm
- Short-Circuit Protective Device: Fuse 6 A gG
- Enclosure: Thermoplastic, glass fibre reinforced (UL 94-V0)
- Actuator: Plunger (st)
- Contact Type: 2 NC (Zb)
- Protection Type: IP30 after EN 60529; DIN VDE 0470 T1
Technical Information:
