092026
Alt: 92026, EGT4-5000
$530.96

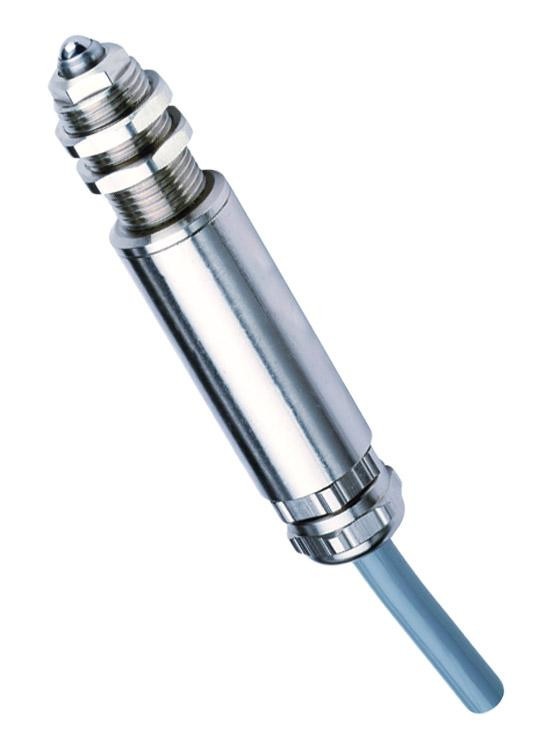

Limit Switch, Single Hole, EGT4-5000
- Weight:
- 1.71 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Series Features Include:
- Connection cross-section: 0.50 mm²
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 250 V
- Switching current (min. at 24 V ): 10 mA
- Switching voltage: min. 12 V
- Utilization category: DC-13 1A 24V, AC-15 2A 230V
- Actuating element: Ball plunger
- Actuating force: approx. 15 N
- Approach speed: 0.01 - 10 m/min
- Ambient temperature (static): -25 - +70 °C
- Cable length: 5 m
- Connection: PUR cable
- Degree of protection: IP67
- Design: Thread M18 x 1
- Installation orientation: any
- Material: Threaded section: Brass, nickel plated, Contact: Fine silver, gold plated, Sleeve: Brass, nickel plated
- Mechanical life: 0.5 x 10⁶
- Number of NC contacts: 2
- Number of NO contacts: 2
- Switching principle: Snap-action switching contact
Technical Information:
