$63.70
077347
Alt: 77347, EGT1SEM4C1832
$242.98

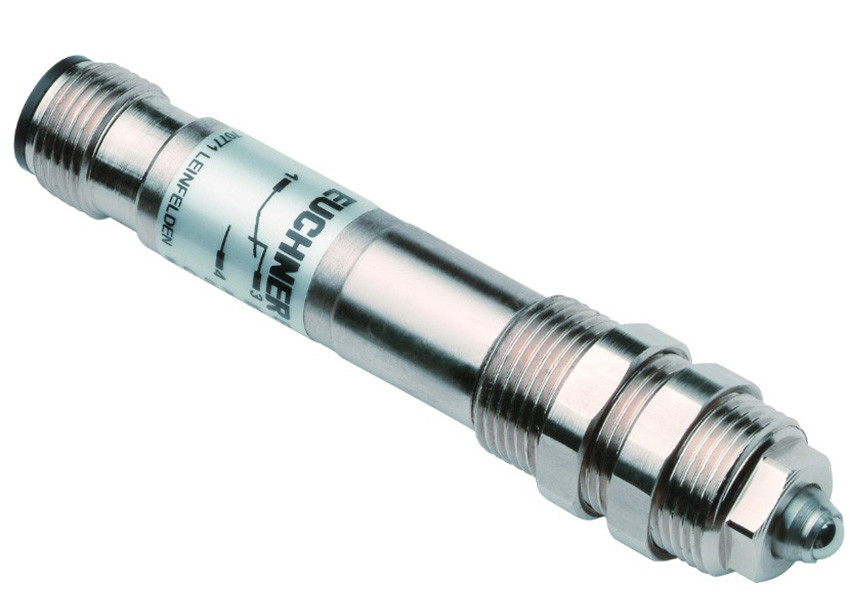

Limit Switch, Single Hole, EGT1SEM4C1832
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- Rated impulse withstand voltage Uimp 2.5 kV
- Rated insulation voltage Ui: 50 V
- Switching current (min. at 24 V ): 10 mA
- Switching voltage: min. 12 V
- Utilization category: DC-13 0.6A 24V, AC-12 0.5A 50V
- Actuating element: Ball plunger
- Actuating force: approx. 16 N
- Approach speed: 0.01 - 8 m/min
- Ambient temperature (static): -5 - +80 °C
- Connection: Plug connector M12
- Degree of protection: IP67
- Design: Thread M14 x 1
- Installation orientation: any
- Material: Threaded section: Brass, nickel plated, Contact: Silver alloy, gold plated, Sleeve: Brass, nickel plated
- Mechanical life: 1 x 10⁶
- Number of NC contacts: 1
- Number of NO contacts: 1
- Repeat accuracy (absolute): ±0.01 mm
- Switching principle: Snap-action switching contact
Technical Information:
