$63.70
079139
Alt: 79139, EGT12RRSEM4C1888
$261.60

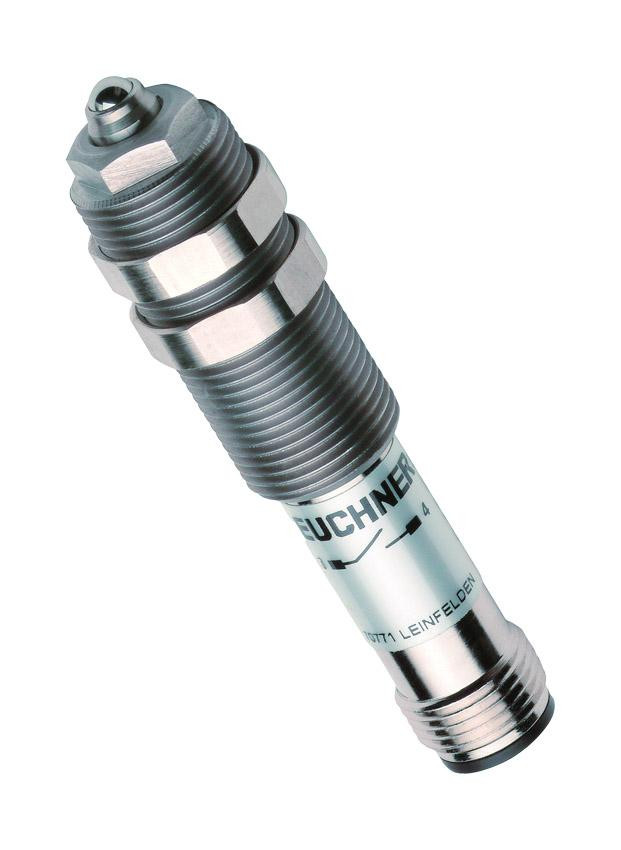

Limit Switch, Single Hole, EGT12RRSEM4C1888
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Series Features Include:
- Rated insulation voltage Ui: 50 V
- Switching current (min. at 24 V ): 1 mA
- Switching voltage: min. 1 V
- Utilization category: DC-13 0.3A 24V, AC-12 0.3A 30V
- Actuating element: Roller plunger
- Actuating force: approx. 16 N
- Approach speed: 0.01 - 8 m/min
- Ambient temperature (static): -25 - +80 °C
- Connection: Plug connector M12
- Degree of protection: IP67
- Design: Thread M12 x 1
- Installation orientation: any
- Material: Threaded section: stainless steel, Contact: Rhodium, Sleeve: Brass, nickel plated
- Mechanical life: 5 x 10⁶
- Number of NC contacts: 1
- Repeat accuracy (absolute): ±0.01 mm
- Switching principle: Reed contact
