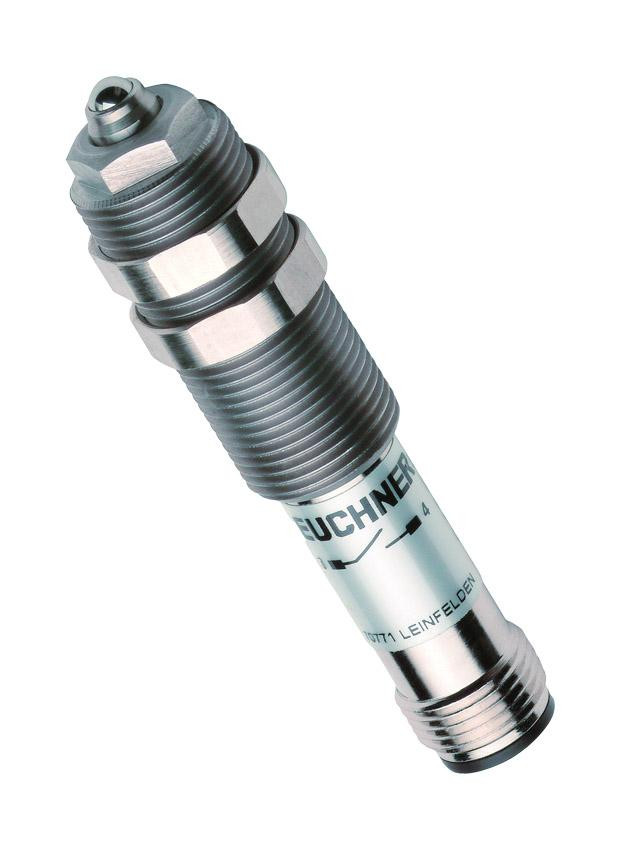

075426

Series Features Include:

• Rated insulation voltage Ui: 50 V
• Switching current (min. at 24 V ): 1 mA
• Switching voltage (min.): 1 V
• Utilization category: AC-12 0.3A 30V, DC-13 0.3A 24V
• Actuating element: Ball plunger
• Actuating force: approx. 16 N
• Approach speed: 0.01 - 8 m/min
• Cable ambient temperature (static): -25 - +80 °C
• Connection: Plug connector M12
• Degree of protection: IP67
• Design: Thread M12 x 1
• Installation orientation: any
• Material: Threaded section: stainless steel, Contact: Rhodium, Sleeve: Brass, nickel plated
• Mechanical life: 30 x 10⁶
• Number of NO contacts: 1
• Repeat accuracy (absolute): ±0.01 mm
• Switching principle: Reed contact

Technical Information:

• Euchner EGT12.SFM5 Limit Switch Datasheet
• Euchner Position and Multiple Limit Switches Catalog
