$602.00
033982
Alt: 33982, EGT1/4RSEM4
$231.41

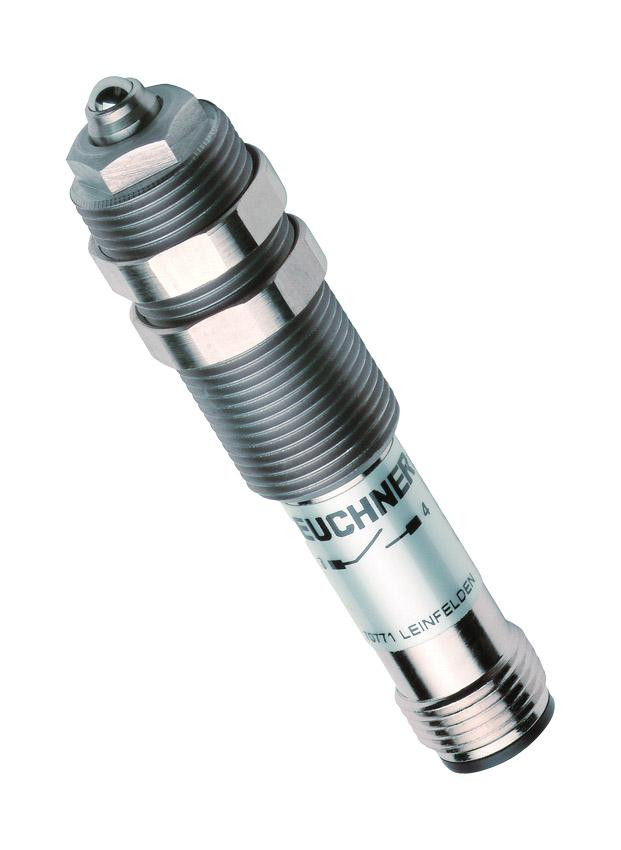

Limit Switch, Single Hole, EGT1/4RSEM4
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Series Features Include:
- Rated insulation voltage Ui: 50 V
- Switching current (min. at 24 V ): 1 mA
- Switching voltage (min.): 1 V
- Utilization category: AC-12 0.3A 30V, DC-13 0.3A 24V
- Actuating element: Ball plunger
- Actuating force: approx. 16 N
- Approach speed max. 8 m/min
- Cable ambient temperature (static): -25 - +80 °C
- Connection: Plug connector M12
- Degree of protection: IP67
- Design Thread: M14 x 1
- Installation orientation: any
- Material: Threaded section: stainless steel, Contact: Rhodium, Sleeve: Brass, nickel plated
- Mechanical life: 30 x 10⁶
- Number of NO contacts: 1
- Repeat accuracy (absolute): ±0.01 mm
- Switching principle: Reed contact
Technical Information:
