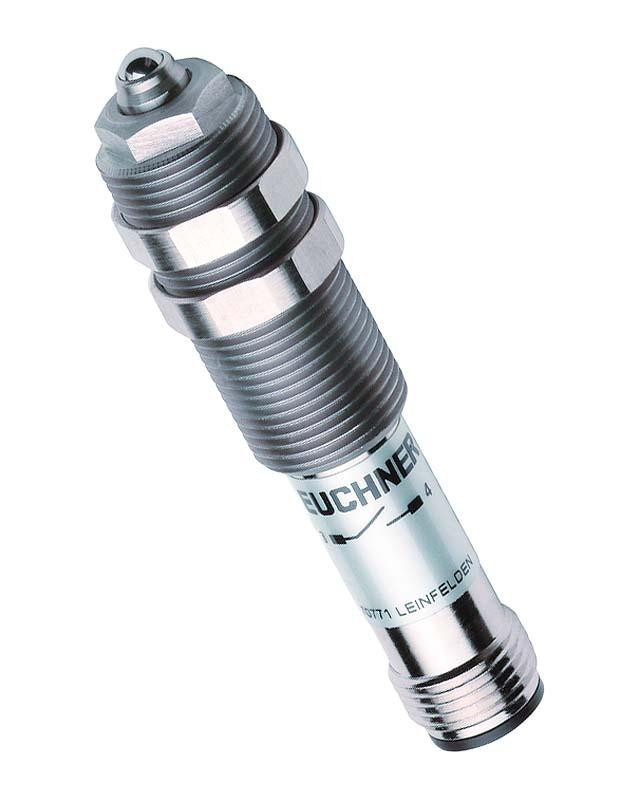

102476

Features Include:

• Connection cross-section: 0.5 mm²
• Rated insulation voltage Ui: 250 V
• Short circuit protection according to IEC 60269-1: 0.4A gG
• Switching current: min. at 24 V 1 mA
• Switching voltage: min. 1 V
• Utilization category: AC-12 0.03A 230V / DC-13 0.3A 24V
• Actuating element Rounded plunger: Actuating force approx. 16 N
• Approach speed max. 8 m/min: Cable ambient temperature (static) -25 - +80 °C
• Cable length: 2 m
• Connection: PUR cable
• Degree of protection: IP68
• Design Thread: M14 x 1
• Installation orientation: any
• Material: Contact Rhodium / Sleeve stainless steel / Threaded section stainless steel
• Mechanical life: 5 x 10⁶
• Number of NO contacts: 1
• Repeat Accuracy (absolute): ±0.01 mm
• Switching Principle: Reed contact

Technical Information:

• Euchner Position and Multiple Limit Switches Catalog
