Light Tower Base, Ø60mm, 24VDC, Multi-Mount 1/2" NPT Socket and M30 External Threads, 8-Pin M12 Connector, Off-White Body, Buzzer and LED Sold Separately (Supports up to 5 LEDs and Buzzer), IP65
SKU:
LR6-02W8NW
Weight:
0.57 LBS
Minimum Purchase:
1 unit
Compact, high-visibility lights with easy M12 connection for clear communication in any industrial setting.
Configure Your Optimal AC Drive Solution
Build a complete solution with expert guidance on AC drives and compatible components including motors, circuit breakers and protection equipment
Configure Your Motor Starter Solution
Configure your DOL motor starter solution with guided selection of protection and control components: starters, contactor, relays and accessories
The LR6-M12 Series will be available in two body color options—sleek black and off-white—providing aesthetic flexibility to complement various workplace settings. Additionally, the series introduces a wide selection of models with 4-pin, 5-pin, and 8-pin configurations, supporting single-tier to multi-tier (up to 5 tiers) LED and buzzer modules. This range of options ensures that customers can find the perfect solution to meet their specific signaling needs.
Key Features of the LR6-M12 Series:

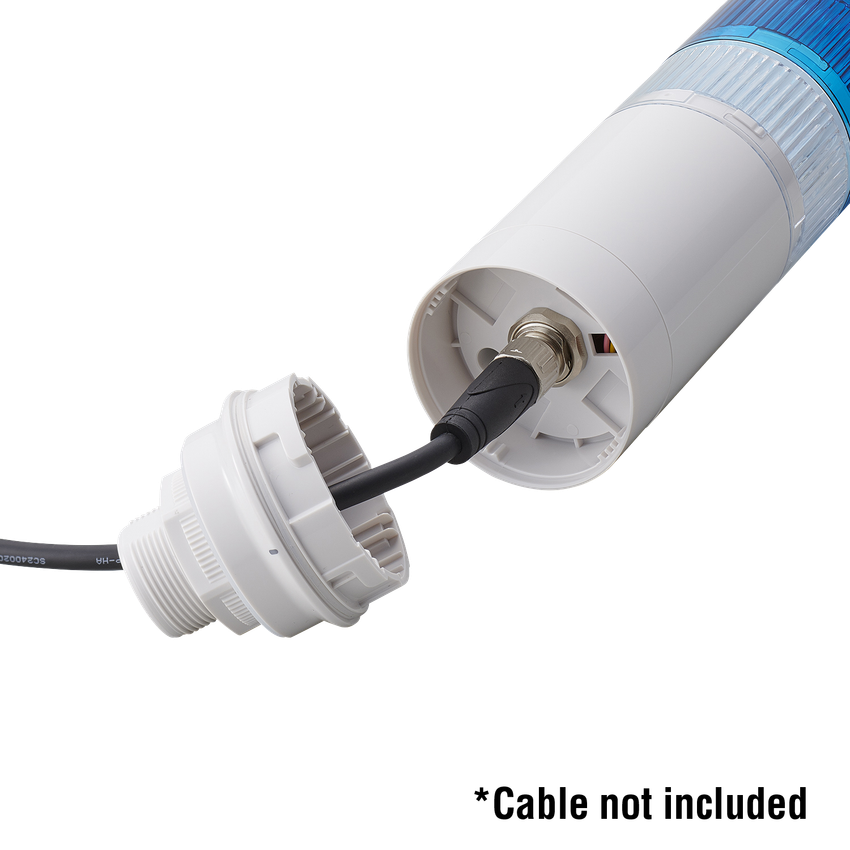

M12 Quick Disconnect: Simplifies installation and maintenance with easy, reliable connections.
Color Options: Black and white body colors to suit any work environment.
Pin Configurations: Available in 4-pin, 5-pin, and 8-pin models for simple to a fully equipped configuration.
Multi-Tier LED and Buzzer Options: Supports from 1-tier up to 5-tier configurations with integrated LED lights and buzzer options.

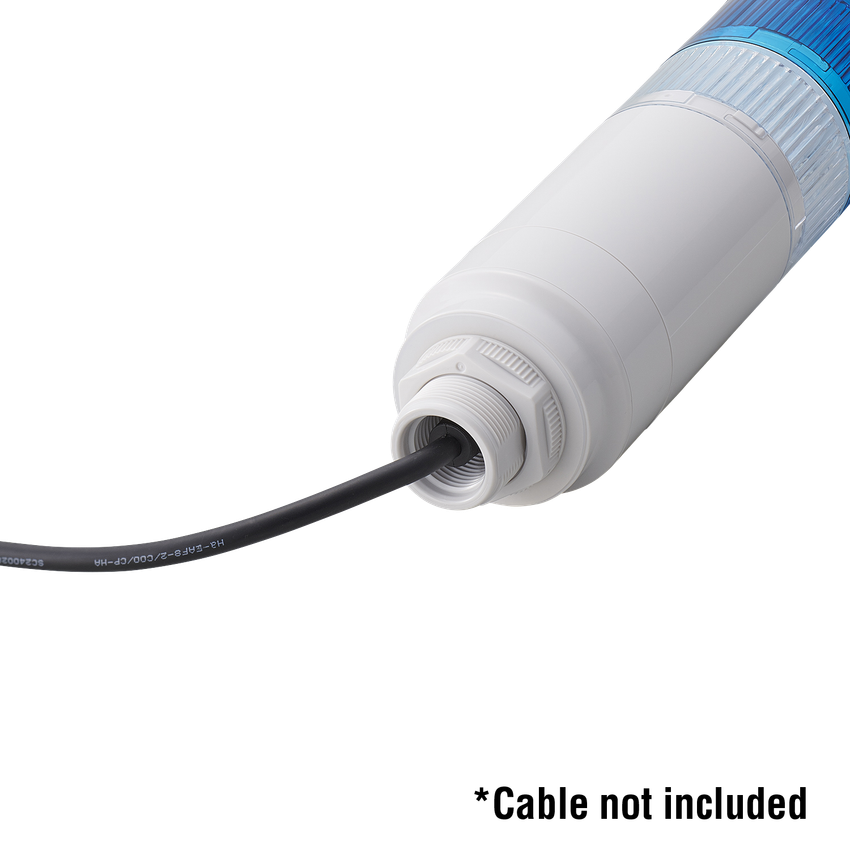

Flexible Mounting: A multi-mount base allows for both direct mounting through a 30mm hole or pole mounting with a 1/2" NPT, providing installation flexibility.
Durability and Reliability: Engineered for industrial-grade durability, these signal towers are designed to withstand challenging environments and provide long-lasting performance.
The LR6-M12 Series adds flexibility and customization essential for complex industrial applications. PATLITE’s goal is to provide businesses with a solution that meets their exact signaling requirements while simplifying the installation process. The M12 quick disconnect and versatile mounting options make this new series a game-changer for companies looking to optimize their operations.
Light Tower, Ø60mm, LED, 24VDC, Multi-Mount 1/2" NPT Socket and M30 External Threads, 8-Pin M12 Connector, Off-White Body, 4 Tier: Red, Amber, Green and Blue LEDs (Supports up to 5 LEDs and Buzzer), IP65

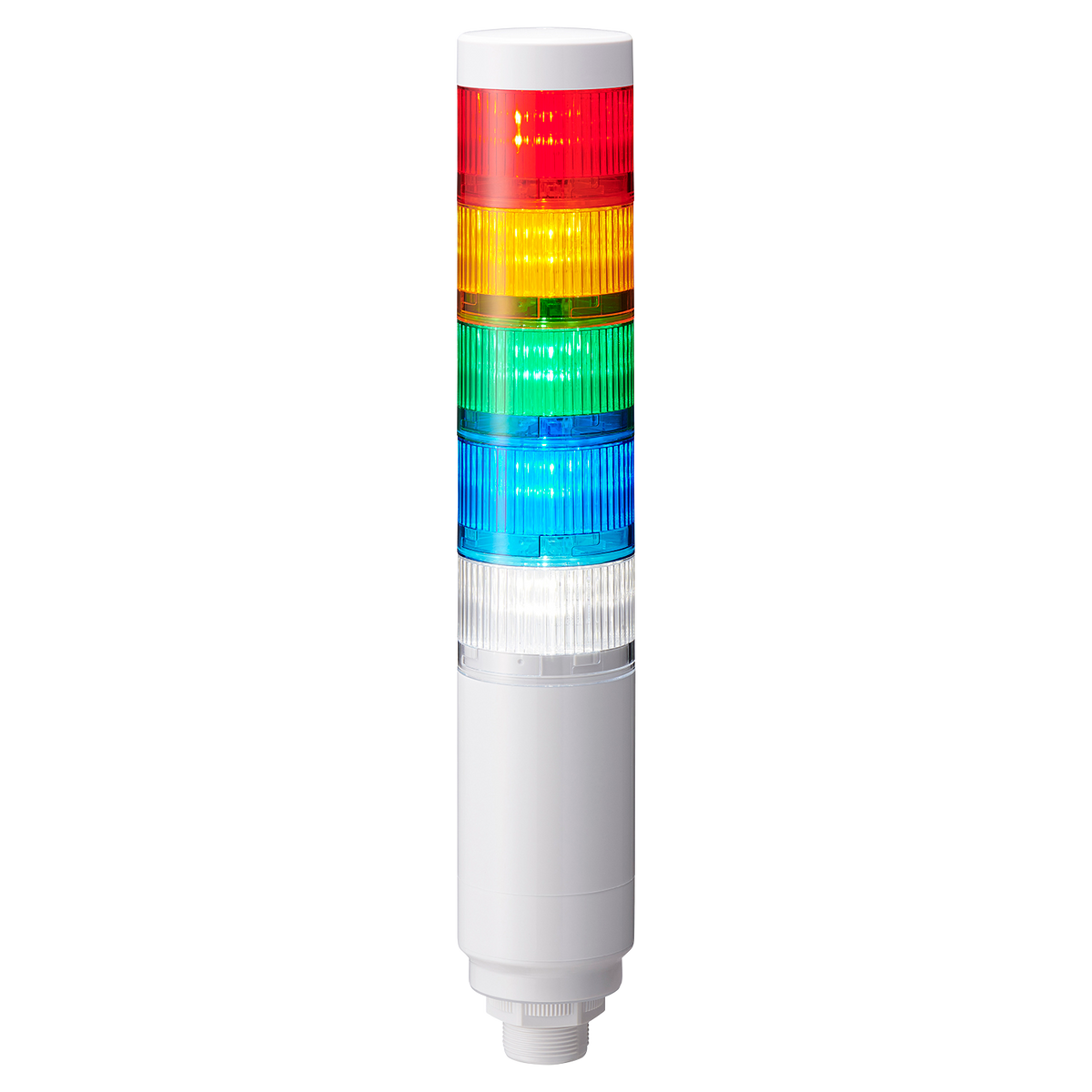

Light Tower, Ø60mm, LED, 24VDC, Multi-Mount 1/2" NPT Socket and M30 External Threads, 8-Pin M12 Connector, Off-White Body, 5 Tier: Red, Amber, Green, Blue and White LEDs (Supports up to 5 LEDs and Buzzer), IP65
Light Tower USB Base Only, Ø60mm, 5VDC, Direct Mount with USB Connector, PC Controlled, Optional Flashing/Buzzer Function with Programming, Black Body, IP65, LEDs Sold Separately
