WME-1M2DFB-R

The WME-D series is a  flush mounted, wall mount, 80mm profile, LED signal tower.

This light tower is easy to install (mounting bracket included!) and can withstand accidental impacts. Compared to the WME-A series these have ultra-bright LEDs,  a louder alarm and a more durable outer shell.

Patlite has discontinued the WME-A series and replaced it with the WME-D series.

The WME-D series has brighter LED lgihts and is an off-white color, the WME-A was an ivory color.

Please note on the 24 volt models: the WME-A series was 24VAC/DC, the new WME-D series is 24VDC only.

Features Include:

• FB type: Built-in audible alarm up to 93dB (at 1m).

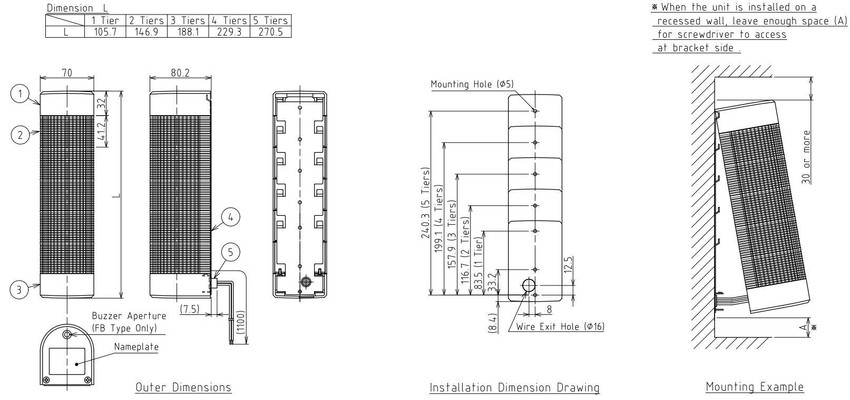

• Installation: Easy vertical and horizontal installation with mounting bracket.
• Interchangeable Modules: No re-wiring even after installation.
• Mount option: Compatible with household switch box (JISC 8336 with 82.5m pitch).
• Main body: Made of PC resin.
• Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission.
• NPN/PNP Compatible: 24V DC type ONLY.

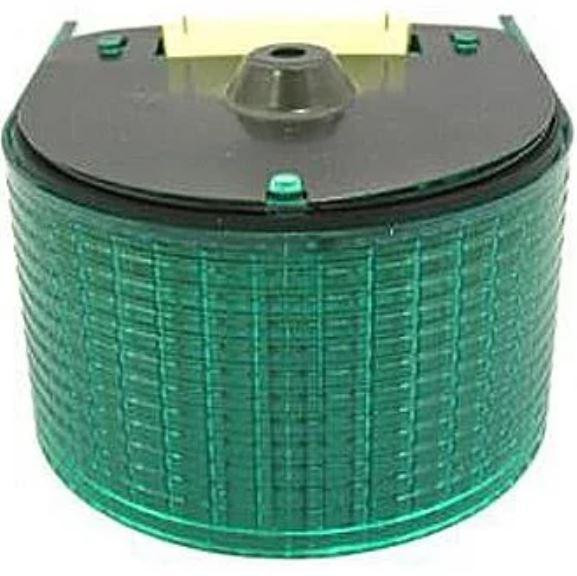

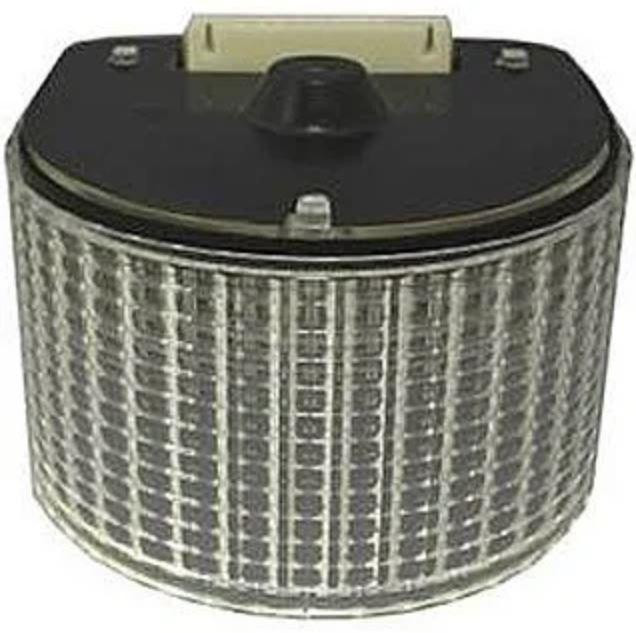

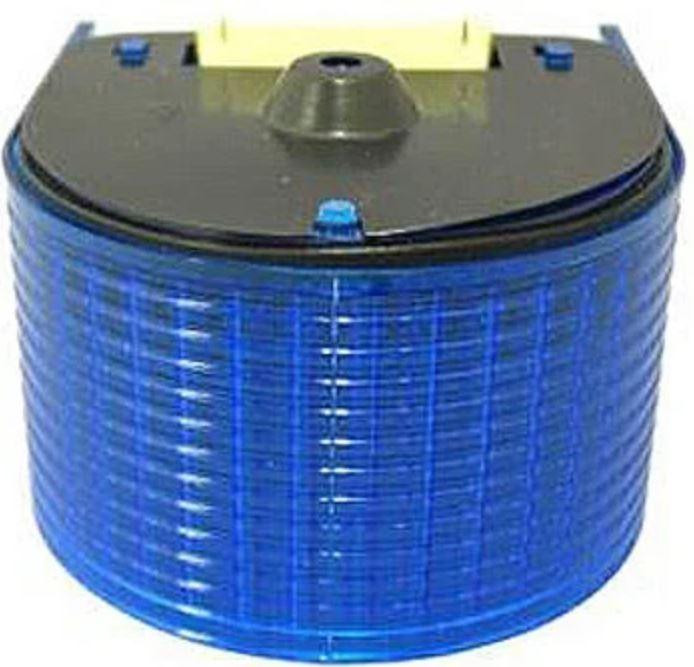

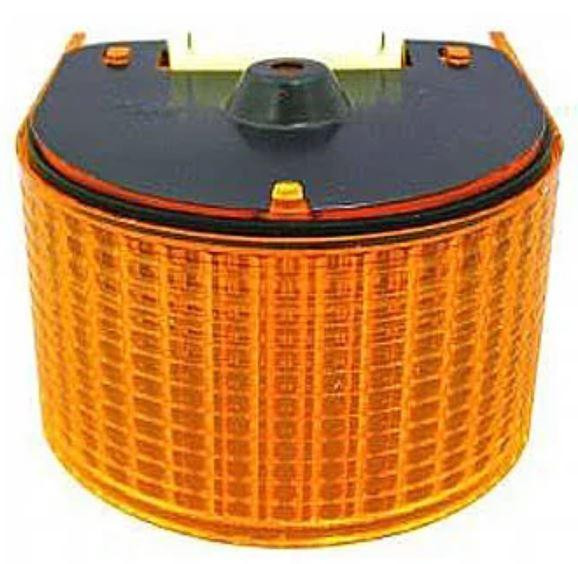

• LED Module Colors: Red, Amber, Green, Blue, White.

Technical Information:

• Patlite WME-D Series Light Tower Brochure
• Patlite WME-D Series Light Tower Specifications
• Patlite WME-D Series Light Tower Manual
• Patlite Signaling Product General Catalog
